Germany Standard Automotive Cable

FLR13Y11Y

Applications

This TPE-E insulated,TPE-U sheathed low tension multi-cores cable is used for ABS systems,it has excellent abrasion resistance and better resistance to bending fatigue.

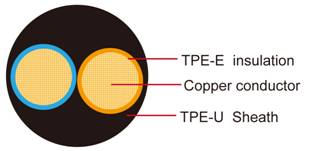

Construction

Conductor	Cu-ETP1 according to DIN EN13602
Insulation	Thermoplasticity polyester (TPE-E)
Sheath	Thermoplasticity polyurethane (TPU)
Standard Compliance	ISO 6722 Class C

Technical Parameters

Operating temperature: –40 °C to +125 °C

	Conductor			Insulation		Cable
Nominal Cross-section	No. andDia. of Wires	Diameter max.	Electrical Resistance at 20°Cmax.	Thickness Wall nom.	Diameter of Core	Sheath Thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	mm	mm	kg/km
2 x 0.50	28/0.16	1.00	37.10	0.20	1.40	0.60	3.85	4.15	22
2 x 0.50	28/0.16	1.00	37.10	0.20	1.40	0.85	4.35	4.65	27
2 x 0.50	28/0.16	1.00	37.10	0.35	1.70	0.80	4.80	5.20	32
2 x 0.60	80/0.11	1.20	24.70	0.20	1.45	0.80	4.35	4.65	28
2 x 0.75	42/0.16	1.20	27.10	0.30	1.80	1.30	6.00	6.40	48
2 x 0.75	96/0.10	1.20	27.10	0.30	1.80	1.30	6.00	6.40	62

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
