Germany Standard Automotive Cable
FLR2X11Y
Applications
This XLPE insulated, PUR sheathed multi-cores cable is used for ABS systems. it has good bending strength properties.

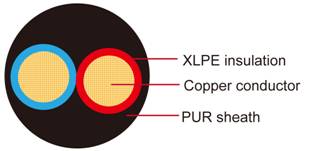

Construction
| Conductor | Cu-ETP1 bare or tinned according to DIN EN 13602 |
| Insulation | Crosslinked polyethylene (XLPE) |
| Sheath | Polyether polyurethane (PUR) |
| Sheath colour | black |
| Standard Compliance | ISO 6722 Calss C |
Technical Parameters
Operating temperature: –40 °C to +125 °C
Special Properties
Special conductor highly tensile and bending resistant Cu-alloy, Cadmium-free.| Conductor | Insulation | Cable | |||||||
| Nominal Cross-section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C Bare/tinned max. | Thickness Wall nom. | Diameter of Core | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 2 x0.35 | 12/0.21 | 0.90 | 52.00/54.50 | 0.25 | 1.35 | 0.50 | 3.50 | 3.90 | 18 |
| 2 x0.50 | 19/0.19 | 1.00 | 37.10/40.10 | 0.30 | 1.50 | 0.65 | 4.20 | 4.60 | 25 |
| 2 x0.50 | 64/0.10 | 1.00 | 38.20/40.10 | 0.35 | 1.60 | 0.95 | 5.00 | 5.40 | 36 |
| 2 x0.75 | 42/0.16 | 1.20 | 24.70/27.10 | 0.50 | 2.20 | 0.90 | 6.00 | 6.40 | 46 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
