Germany Standard Automotive Cable
FLR5Y-A
Applications
This PTFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting , charging, lighting, signal and instrument panel circuits.

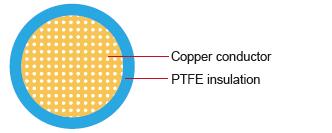

Construction
| Conductor | Cu-ETP1 bare according to DIN EN13602 |
| Insulation | PTFE |
| Standard Compliance | ISO 6722 Class H |
Technical Parameters
Operating temperature: –90°C to +260°CSpecial properties
Excellent resistance to chemicals
| Conductor Construction | Insulation | Cable | |||||
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x 0.22 | 7/0.21 | 0.7 | 87.9 | 0.20 | 1.1 | 1.2 | 3 |
| 1x 0.35 | 7/0.27 | 0.8 | 56.8 | 0.20 | 1.25 | 1.35 | 5 |
| 1x 0. 5 | 19/0.19 | 1.0 | 38.6 | 0.22 | 1.4 | 1.6 | 6 |
| 1x 0. 75 | 19/0.24 | 1.2 | 25.7 | 0.24 | 1.7 | 1.9 | 10 |
| 1x1 | 19/0.27 | 1.35 | 19.3 | 0.24 | 1.75 | 1.95 | 11 |
| 1x 1.5 | 19/0.33 | 1.7 | 13.2 | 0.24 | 2.1 | 2.3 | 17 |
| 1x 2.5 | 19/0.41 | 2.2 | 7.92 | 0.28 | 2.5 | 2.8 | 25 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
