Germany Standard Automotive Cable

FLYWK&FLRYWK

Applications

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging, lighting, signal and instrument panel circuits.

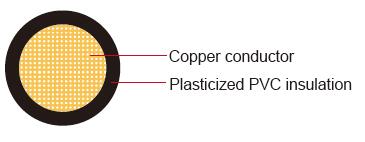

Construction

Conductor	Cu-ETP1 bare according to DIN EN13602
Insulation	Plasticized PVC (heat and cold resistant)
Standard Compliance	ISO 6722 Class B

Special properties

Cold bending test according to ISO 6722 at –50 °C.

Short-term and long-term ageing according to ISO 6722, Class B.

Flexible conductors with PVC Thin wall insulation with increased mechanical strength

Technical Parameters

Operating temperature: –40°C to +250 °C

	Conductor Construction			Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.	Electrical resistance at 20°C max.	Nominal thickness	Overall Diameter Min.	Overall Diameter Max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	g/km
1x0.5	16/0.20	1.0	37.1	0.28	1.4	1.6	6
1x0.75	24/0.20	1.2	24.7	0.6	2.2	2.5	33
1x1.00	32/0.20	1.4	18.5	0.3	1.8	2.1	57
1x1.50	30/0.25	1.7	12.7	0.3	2.2	2.4	111
1x2.50	50/0.25	2.1	7.6	0.7	3.3	3.7	278



*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
