Germany Standard Automotive Cable
FLYY-Multicore
Applications
This PVC insulated, PVC sheathed low tension multi-cores cable is used for automobiles, motorcycles and other motor vehicles.

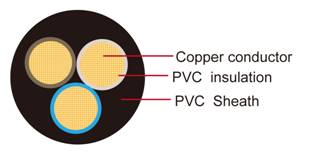

Construction
| Conductor | Cu-ETP1 bare or tinned according to DIN EN13602 |
| Insulation | PVC |
| Sheath | PVC |
| Standard Compliance | ISO 6722 Class B |
Technical Parameters
Operating temperature: –40 °C to +105 °C| Conductor | Insulation | Cable | |||||||
| Nominal Cross-section | No. andDia. of Wires | Diameter max. | Electrical Resistance at 20°C Bare/tinned Max. | Thickness Wall nom. | Diameter of Core | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 2x 0.50 | 16/0.21 | 1.00 | 37.10/38.20 | 0.50 | 1.75 | 0.50 | 4.30 | 4.70 | 31 |
| 2x 0.75 | 24/0.21 | 1.20 | 24.70/25.40 | 0.60 | 2.30 | 0.50 | 5.40 | 5.80 | 48 |
| 2x 1.00 | 32/0.21 | 1.35 | 18.50/19.10 | 0.60 | 2.50 | 0.80 | 6.40 | 6.80 | 65 |
| 2x 1.50 | 30/0.26 | 1.70 | 12.70/13.00 | 0.60 | 2.75 | 0.90 | 7.00 | 7.50 | 83 |
| 3x 0.50 | 16/0.21 | 1.00 | 37.10/38.20 | 0.50 | 2.10 | 0.60 | 5.80 | 6.20 | 53 |
| 3x 0.75 | 24/0.21 | 1.20 | 24.70/25.40 | 0.60 | 2.30 | 0.60 | 5.70 | 6.30 | 60 |
| 3x 1.00 | 32/0.21 | 1.35 | 18.50/19.10 | 0.60 | 2.50 | 0.90 | 6.90 | 7.50 | 81 |
| 3x 1.50 | 30/0.26 | 1.70 | 12.70/13.00 | 0.60 | 2.65 | 0.70 | 6.90 | 7.50 | 98 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
