Multipair Overall Screened Armoured Cables-Belden Equivalent 26503

Application

These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

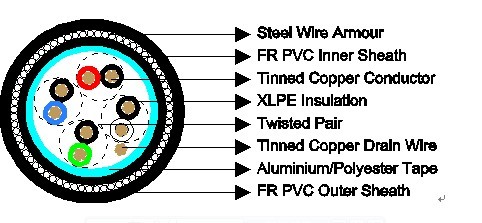

Construction

Conductor: Tinned copper wire.

Insulation:XLPE.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire:18 AWG (7X26) tinned copper wire.

Inner Sheath: FR PVC.

Armour: Steel wire armour.

Outer Sheath: FR PVC.

Insulation Colour: Black/Red and Numbered 1, Black/White and Number 2, Black/Green and
Number 3, Black/Blue and Number 4. Other colours are available upon your request.

Electrical & Mechanical Characteristics

AWG		16
Conductor Construction		7x24
Voltage Rating	V	300
Nom. Conductor DC Resistance @ 20℃	Ω/km	14
Nominal Outer Shield DC Resistance @ 20℃	Ω/km	13
Bending Radius		11xOverall Diameter
Operating Temperature	℃	-40~90

Dimensions

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE1126503V SWA	4	0.7	1.7	21.8
