Multipair Overall Screened Armoured Cables-Belden Equivalent 26514
Application
These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

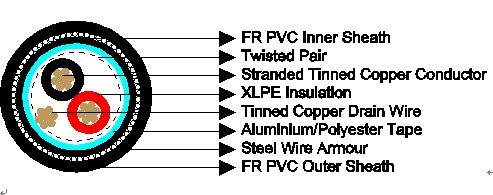

Construction
Conductor: Tinned copper wire.
Insulation:XLPE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire:20 AWG (7X28) tinned copper wire.
Inner Sheath: FR PVC.
Armour: Steel wire armour.
Outer Sheath: FR PVC.
Insulation Colour: Black, Red. Other colours are available upon your request.
Electrical & Mechanical Characteristics
AWG |
|
18 |
Conductor Construction |
|
7x26 |
Voltage Rating |
V |
300 |
Nom. Conductor DC Resistance @ 20℃ |
Ω/km |
22 |
Nominal Outer Shield DC Resistance @ 20℃ |
Ω/km |
33 |
Bending Radius |
|
12xOverall Diameter |
Operating Temperature |
℃ |
-40~90 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE1126514V SWA |
1 |
0.7 |
1.5 |
12.64±1 |
