Multicore Unscreened Armoured Cables-Belden Equivalent 28271
Application
These multicore unscreened armoured cables are Type MC Metal Clad cables.

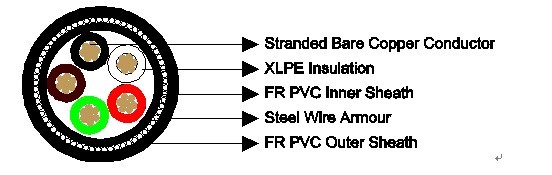

Construction
Conductor: Bare copper wire.
Insulation: XLPE.
Inner Sheath: FR PVC.
Armour: Steel wire armour.
Outer Sheath: FR PVC.
Insulation Colour: Black, White, Red, Green, Brown. Other colours are
available upon your request.
Electrical & Mechanical Characteristics
AWG |
|
12 |
Conductor Construction |
|
7x20 |
Nominal Conductor DC Resistance @20℃ |
Ω/km |
5 |
Voltage Rating |
V |
600 |
Bending Radius |
|
13xOverall Diameter |
Operating Temperature |
℃ |
-40~90 |
Dimensions
Ordering Code |
No. of cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE1128271V |
5 |
0.8 |
1.7 |
19.72 |
