Multipair Overall Screened Cables-Belden Equivalent 8451
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

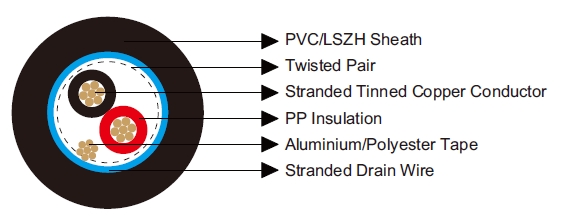

Construction
Conductor: Tinned copper wire.
Insulation: PP.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black, Red.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
7x0.254 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
112 |
Nominal Capacitance Conductor to Screen |
pF/m |
220 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~75 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8451V |
1 |
0.2 |
0.5 |
3.5 |
BE8451H |
1 |
0.2 |
0.5 |
3.5 |
