Multicore Overall Screened Cables-Belden Equivalent 8729
Application
These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a drain wire. These cables are suitable for used as audio, control and instrumentation cables.

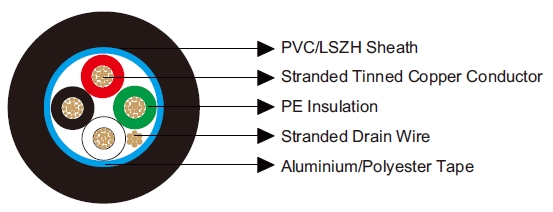

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper covered steel.
Sheath: PVC/LSZH.
Insulation Colour: Black, Red, Green, Clear.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
19x0.16 |
UL Style |
|
2094 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
72 |
Nominal Capacitance Conductor to Screen |
pF/m |
138 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-40~75 |
Dimensions
Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8729V |
4 |
0.41 |
1.30 |
6.5 |
BE8729H |
4 |
0.41 |
1.30 |
6.5 |
