Multicore Overall Screened Cables-Belden Equivalent 8735
Application
These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as communication and instrumentation cables.

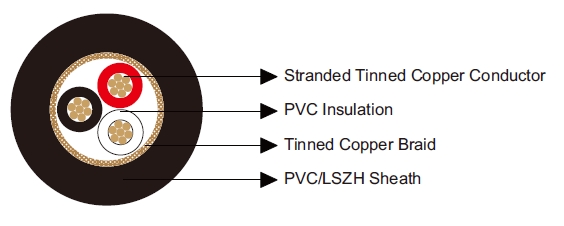

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Tinned copper braid, 70% coverage.
Sheath: PVC/LSZH.
Insulation Colour: Black, Red, White.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
7x0.254 |
UL Style |
|
2095 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
112 |
Nominal Capacitance Conductor to Screen |
pF/m |
197 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8735V |
3 |
0.38 |
0.64 |
5.1 |
BE8735H |
3 |
0.38 |
0.64 |
5.1 |
