Multipair Overall Screened Cables-Belden Equivalent 8761
Application

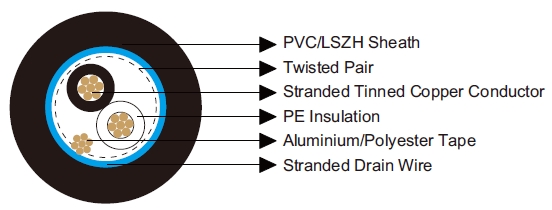

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.
Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black, Clear.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
7x0.254 |
UL Style |
|
2092 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
79 |
Nominal Capacitance Conductor to Screen |
pF/m |
154 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~60 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8761V |
1 |
0.41 |
0.64 |
4.4 |
BE8761H |
1 |
0.41 |
0.64 |
4.4 |
