Multipair Individually Screened Cables-Belden Equivalent 8764
Application
These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG solid tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

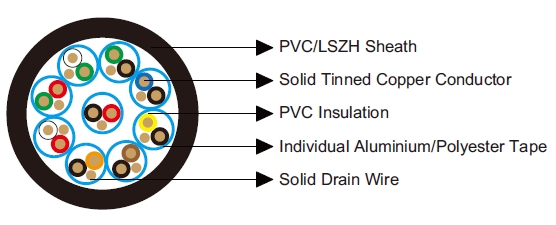

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Solid tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
Solid |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
131 |
Nominal Capacitance Conductor to Screen |
pF/m |
253 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8764V |
9 |
0.33 |
1.02 |
10.8 |
BE8764H |
9 |
0.33 |
1.02 |
10.8 |
