Multipair Individually Screened Cables-Belden Equivalent 8777
Application
These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG stranded tinned copper drain wire. These cables are suitable for used as audio, control and computer cables.
Construction

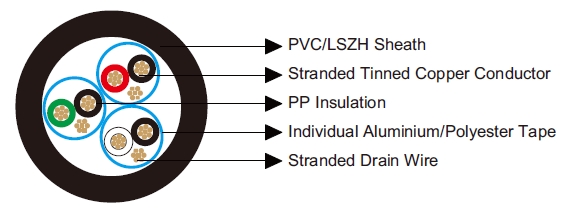

Conductor: Tinned copper wire.
Insulation: PP.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Red & Black, Black & White, Black & Green.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
7x0.254 |
UL Style |
|
2919 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
30 |
Nominal Capacitance Conductor to Conductor |
pF/m |
98 |
Nominal Capacitance Conductor to Screen |
pF/m |
180 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8777V |
3 |
0.25 |
0.86 |
6.9 |
BE8777H |
3 |
0.25 |
0.86 |
6.9 |
