Multipair Overall Screened Cables-Belden Equivalent 9154
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

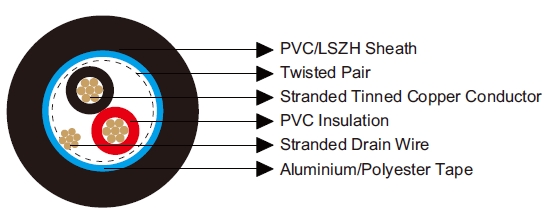

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black/Red.
Electrical & Mechanical Characteristics
AWG |
|
20 |
Conductor Construction |
|
7x0.32 |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
34.1 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
197 |
Nominal Capacitance Conductor to Screen |
pF/m |
328 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9154V |
1 |
0.36 |
0.79 |
5.0 |
BE9154H |
1 |
0.36 |
0.79 |
5.0 |
