Multipair Overall Screened Cables-Belden Equivalent 9306
Application

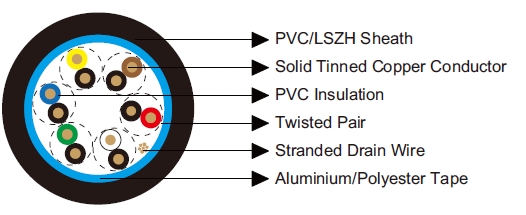

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.
Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
Solid |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
115 |
Nominal Capacitance Conductor to Screen |
pF/m |
164 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9306V |
6 |
0.33 |
0.81 |
8.0 |
BE9306H |
6 |
0.33 |
0.81 |
8.0 |
