Multipair Overall Screened Cables-Belden Equivalent 9508
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.
Construction

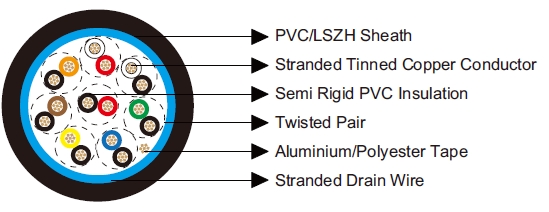

Conductor: Tinned copper wire.
Insulation: Semi Rigid PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White.
Electrical & Mechanical Characteristics
AWG |
|
24 |
Conductor Construction |
|
7x0.2 |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
85 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
98 |
Nominal Capacitance Conductor to Screen |
pF/m |
164 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-30~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9508V |
8 |
0.25 |
0.89 |
8.2 |
BE9508H |
8 |
0.25 |
0.89 |
8.2 |
