Multipair Overall Screened Cables-Belden Equivalent 9525

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

Construction

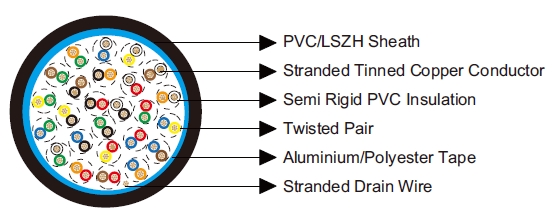

Conductor: Tinned copper wire.

Insulation: Semi Rigid PVC.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue, Red/Yellow, Red/Brown, Red/Orange, Green/White, Green/Blue, Green/Yellow, Green/Brown, Green/Orange, White/Blue, White/Yellow, White/Brown, White/ Orange, Blue/Yellow, Blue/Brown, Blue/Orange.

Electrical & Mechanical Characteristics

AWG		24
Conductor Construction		7x0.2
UL Style		2464
Maximum Conductor Resistance	Ω/km	85
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	98
Nominal Capacitance Conductor to Screen	pF/m	164
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-30~80

Dimensions

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE9525V	25	0.25	1.14	12.8
BE9525H	25	0.25	1.14	12.8
