Multicore Overall Screened Cables-Belden Equivalent 9535
Application
These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

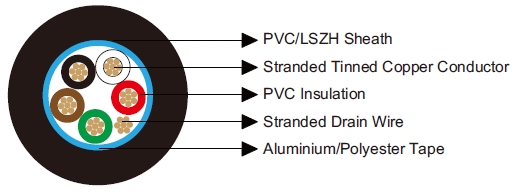

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Stranded Tinned Copper, 7x0.20.
Sheath: PVC/LSZH.
Insulation Colour: Black, White, Red, Green, Brown.
Electrical & Mechanical Characteristics
AWG |
|
24 |
Conductor Construction |
|
7x0.20 |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
85 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
108 |
Nominal Capacitance Conductor to Screen |
pF/m |
213 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-30~80 |
Dimensions
Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9535V |
5 |
0.25 |
0.81 |
4.8 |
BE9535H |
5 |
0.25 |
0.81 |
4.8 |
