Multipair Overall Screened Cables-Belden Equivalent 9680
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are used as low capacitance computer cables for EIA RS-232/422 applications.

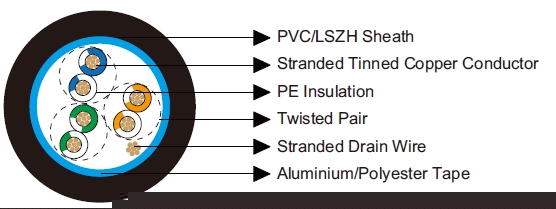

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White.
Electrical & Mechanical Characteristics
AWG |
|
24 |
Conductor Construction |
|
7x0.2 |
UL Style |
|
2919 |
Maximum Conductor Resistance |
Ω/km |
85 |
Voltage Rating |
V |
30 |
Nominal Capacitance Conductor to Conductor |
pF/m |
51 |
Nominal Capacitance Conductor to Screen |
pF/m |
90 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9680V |
3 |
0.25 |
0.89 |
6.4 |
BE9680H |
3 |
0.25 |
0.89 |
6.4 |
