Multicore Overall Foil & Braid Screened Cables-Belden Equivalent 9791
Application
These multicore overall screened cables have individually insulated cores laid up in a foil/braid screen. These cables are suitable for RS-232 and RS-423 applications.

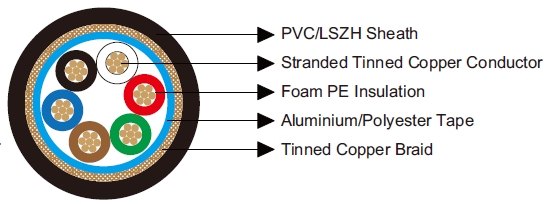

Construction
Conductor: Tinned copper wire.
Insulation: FoamPE.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 65% coverage.
Sheath: PVC/LSZH.
Insulation Colour: Black, White, Red, Green, Brown, Blue.
Electrical & Mechanical Characteristics
AWG |
|
28 |
Conductor Construction |
|
7x0.127 |
UL Style |
|
2919 |
Maximum Conductor Resistance |
Ω/km |
148.6 |
Voltage Rating |
V |
30 |
Nominal Capacitance Conductor to Conductor |
pF/m |
39 |
Nominal Capacitance Conductor to Screen |
pF/m |
72 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-30~80 |
Dimensions
Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9791V |
6 |
0.4 |
0.6 |
5.7 |
BE9791H |
6 |
0.4 |
0.6 |
5.7 |
