BS5308 Cable Part 1 Type1 PE-IS-OS-PVC
RE-2Y(St)Y PIMF
Applications
BS5308 individual shieled pvc sheath cable unarmoured versions (Part 1 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry.

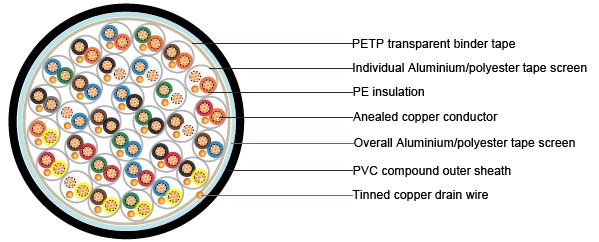

Construction
| Conductor | Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 0.5 mm^2, 1.0 mm^2 solid(Class 1), 1.5mm^2 or 2.5mm^2, multistranded(Class 2) to BS6360 |
| Insulation | PE (Polyethylene) type 03 to BS6234 |
| Pairing | Two insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Colour code | See technical information |
| Individual screen |
Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm^2 |
| Binder tape | PETP transparent tape |
| Collective screen | Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2 |
| Outer sheath | PVC Sheath, type TM 1 or type 6 to BS 6746 |
| Sheath colour | Black or blue |
Mechanical and Electrical Properties
| Operating temperature | -40C up to + 70C( fixed installation) |
| 0C to +50C(during operation ) | |
| Minimum bending radius | 5 x overall diameter |
| Conductor Area Size | mm^2 | 0.5 | 0.5 | 0.75 | 1.0 | 1.5 | |
| Conductor Stranding | No. x mm | 1 x 0.8 | 16 x 0.2 | 24 x 0.2 | 1 x 1.13 | 7 x 0.53 | |
| Conductor resistance max | ohm/km | 36.8 | 39.7 | 26.5 | 18.2 | 12.3 | |
| Insulation resistance min | Gohm/km | 5 | 5 | 5 | 5 | 5 | |
| Capacitance unbalance at 1kHz(pair to pair screen) | pF/250m | 250 | |||||
| Max. Mutual Capacitance@ 1 kHz forNon OS or OScables (except one-pair andtwo-pairs) | pF/m | 115 | 115 | 115 | 115 | 120 | |
| Max. Mutual Capacitance @1 kHz IS/OS cables (include1 pair and 2 pair) | pF/m | 75 | 75 | 75 | 75 | 85 | |
| Max. L/R Ratio for adjacentcores(Inductance/Resistance) | μH/ohm | 25 | 25 | 25 | 25 | 40 | |
| Test voltage | Core to core | V | 1000 | 1000 | 1000 | 1000 | 1000 |
| Core to screen | V | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Rated voltage max | V | 300/500 | 300/500 | 300/500 | 300/500 | 300/500 | |
Parameter
| No.of Pairs | No.and Dia. of Wires | Nominal Conductor Cross-Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Dia. of Cable | Approx. Weight |
| no./mm | mm^2 | mm | mm | mm | kg/km | |
| 2 | 1/0.8 | 0.5 | 0.5 | 0.9 | 9.7 | 95 |
| 5 | 1/0.8 | 0.5 | 0.5 | 1.2 | 13 | 180 |
| 10 | 1/0.8 | 0.5 | 0.5 | 1.2 | 16.9 | 310 |
| 15 | 1/0.8 | 0.5 | 0.5 | 1.3 | 19.7 | 440 |
| 20 | 1/0.8 | 0.5 | 0.5 | 1.3 | 22.3 | 560 |
| 30 | 1/0.8 | 0.5 | 0.5 | 1.5 | 27.1 | 820 |
| 50 | 1/0.8 | 0.5 | 0.5 | 2 | 35 | 1370 |
| 2 | 16/0.2 | 0.5 | 0.6 | 1.1 | 11.2 | 110 |
| 5 | 16/0.2 | 0.5 | 0.6 | 1.2 | 14.5 | 250 |
| 10 | 16/0.2 | 0.5 | 0.6 | 1.3 | 19.3 | 480 |
| 15 | 16/0.2 | 0.5 | 0.6 | 1.5 | 22.6 | 570 |
| 20 | 16/0.2 | 0.5 | 0.6 | 1.5 | 25.7 | 780 |
| 30 | 16/0.2 | 0.5 | 0.6 | 1.7 | 31 | 1020 |
| 50 | 16/0.2 | 0.5 | 0.6 | 2.2 | 39.9 | 1680 |
| 2 | 1/1.13 | 1 | 0.6 | 1.1 | 11.9 | 200 |
| 5 | 1/1.13 | 1 | 0.6 | 1.2 | 15.4 | 290 |
| 10 | 1/1.13 | 1 | 0.6 | 1.3 | 20.5 | 580 |
| 15 | 1/1.13 | 1 | 0.6 | 1.5 | 24.1 | 780 |
| 20 | 1/1.13 | 1 | 0.6 | 1.7 | 27.7 | 1010 |
| 30 | 1/1.13 | 1 | 0.6 | 2 | 33.7 | 1430 |
| 50 | 1/1.13 | 1 | 0.6 | 2.2 | 42.5 | 2360 |
| 2 | 7/0.53 | 1.5 | 0.6 | 1.2 | 13.6 | 250 |
| 5 | 7/0.53 | 1.5 | 0.6 | 1.3 | 17.7 | 460 |
| 10 | 7/0.53 | 1.5 | 0.6 | 1.5 | 23.9 | 760 |
| 15 | 7/0.53 | 1.5 | 0.6 | 1.7 | 28 | 1020 |
| 20 | 7/0.53 | 1.5 | 0.6 | 2 | 31.7 | 1350 |
| 30 | 7/0.53 | 1.5 | 0.6 | 2.2 | 38.6 | 1900 |
| 50 | 7/0.53 | 1.5 | 0.6 | 2.2 | 48.9 | 3060 |
