BS 5467 Armoured Power Cables, 600/1000V
Five-core 600/1000 V cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

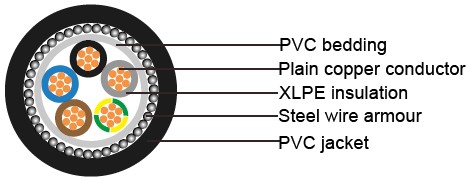

Construction
| Conductor | Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. | |
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) | |
| Colour Code | 1 Core : Brown | |
| 2 Cores : Brown or Blue | ||
| 3 Cores : Brown, Black, Grey | ||
| 4 Cores : Blue, Brown, Black, Grey | ||
| 5 Cores : Green/Yellow, Blue, Brown, Black, Grey | ||
| Above 5 Cores : White Cores with black numbers | ||
| Bedding | Single core | extruded layer of polymeric material |
| Multicore | a) extruded layer of polymeric materia | |
| b) or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having conductor area of 16mm² and above | ||
| Armour | Single Core : AWA (Aluminum Wire Armour) | |
| Multi Core : SWA (Steel Wire Armour) | ||
| Outer Sheath | Extruded PVC, type 9 specified in BS7655 | |
Technical Information
- Voltage rating 600/1000V
- Temperature rating 0°C to +90°C
- Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter - Flame retardant IEC60332 part 1, BS4066 part 1
CABLE PARAMETER
| Nominal Cross-sectional Area | >Strand Type | Nominal Insulation thickness | Nominal bedding thickness |
Nominal Steel Wire Armor dia. | Nominal Sheath thickness | Approx. OverallDiameter | >Aprrox Weight |
|
| Extruded bedding | Taped bedding | |||||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
| 5x1.5 | 7/0.53 | 0.6 | 0.8 | 0.9 | 1.4 | 14.3 | - | 430 |
| 5x2.5 | 7/0.67 | 0.7 | 0.8 | 0.9 | 1.4 | 16.1 | - | 545 |
| 5x4 | 7/0.85 | 0.7 | 0.8 | 0.9 | 1.5 | 17.8 | - | 680 |
| 5x6 | 7/1.04 | 0.7 | 0.8 | 1.25 | 1.5 | 20 | - | 840 |
| 5x10 | 7/1.35 | 0.7 | 0.8 | 1.25 | 1.6 | 22.9 | - | 1105 |
| 5x16 | 7/1.70 | 0.7 | 1 | 1.6 | 1.7 | 26.6 | 26.2 | 1450 |
| 5x25 | 7/2.14 | 0.9 | 1 | 1.6 | 1.8 | 31.5 | 31.1 | 2245 |
| 5x35 | 7/2.52 | 0.9 | 1 | 1.6 | 1.9 | 34.8 | 34.4 | 2840 |
| 5x50 | 19/1.78 | 1.0 | 1.2 | 2 | 2 | 40.4 | 39.6 | 3895 |
| 5x70 | 19/2.14 | 1.1 | 1.2 | 2 | 2.2 | 46.3 | 45.5 | 5145 |
