BS 5467 Armoured Power Cables, 600/1000V

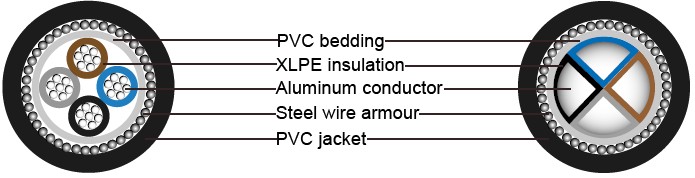

Four-core 600/1000 V cables with solid aluminum conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.Construction
| Conductor | Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. | |
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) | |
| Colour Code | 1 Core : Brown | |
| 2 Cores : Brown or Blue | ||
| 3 Cores : Brown, Black, Grey | ||
| 4 Cores : Blue, Brown, Black, Grey | ||
| 5 Cores : Green/Yellow, Blue, Brown, Black, Grey | ||
| Above 5 Cores : White Cores with black numbers | ||
| Bedding | Single core | extruded layer of polymeric material |
| Multicore | a) extruded layer of polymeric materia | |
| b) or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having conductor area of 16mm² and above | ||
| Armour | Single Core : AWA (Aluminum Wire Armour) | |
| Multi Core : SWA (Steel Wire Armour) | ||
| Outer Sheath | Extruded PVC, type 9 specified in BS7655 | |
Technical Information
- Voltage rating: 600/1000V
- Temperature rating: 0°C to +90°C
- Bending radius: 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter - Flame retardant: IEC60332 part 1, BS4066 part 1
CABLE PARAMETER
| Nominal | Nominal Insula- | Nominal | Nominal Steel | Armour strip | Nominal | Approx. Overall Diameter | Aprrox Weight |
|||
| Cross-sectional Area | tion thickness | bedding thickness |
Wire Armor dia. | thickness | width | Sheath thickness | wire armor | strip armor | ||
| Extruded bedding | Tapedb edding |
|||||||||
| mm² | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 4x16 | 0.7 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 21.8 | 21.8 | 20.5 | 980 |
| 4x25 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 26.9 | 26.5 | 24.5 | 1220 |
| 4x25* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 24.6 | 24.2 | 22.2 | 1220 |
| 4x35 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 29.5 | 29.2 | 27.1 | 1420 |
| 4x35* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 27 | 26.6 | 24.6 | 1420 |
| 4x50* | 1.0 | 1 | 1.6 | 1 | 2.4 | 1.9 | 30 | 29.6 | 28.4 | 1770 |
| 4x70* | 1.1 | 1.2 | 2.0 | 1 | 3.6 | 2.1 | 35.3 | 34.5 | 32.5 | 2500 |
| 4x95* | 1.1 | 1.2 | 2.0 | 1.4 | 3.6 | 2.2 | 39 | 38.2 | 37 | 2980 |
| 4x120* | 1.2 | 1.4 | 2.5 | 1.4 | 4.8 | 2.3 | 44 | 42.8 | 40.6 | 3950 |
| 4x150* | 1.4 | 1.4 | 2.5 | 1.4 | 4.8 | 2.4 | 47.9 | 46.7 | 44.5 | 4600 |
| 4x185* | 1.6 | 1.4 | 2.5 | 1.4 | 4.8 | 2.6 | 52.7 | 51.5 | 49.3 | 5430 |
| 4x240* | 1.7 | 1.6 | 2.5 | 1.8 | 4.8 | 2.7 | 58.5 | 56.9 | 55.5 | 6660 |
| 4x300* | 1.8 | 1.6 | 2.5 | 1.8 | 6.4 | 2.9 | 63.8 | 62.2 | 60.8 | 7770 |
