BS 5467 Armoured Power Cables, 600/1000V
Four-core 600/1000 V cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

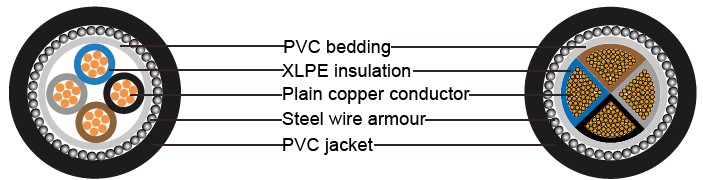

Construction
| Conductor | Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. | |
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) | |
| Colour Code | 1 Core : Brown | |
| 2 Cores : Brown or Blue | ||
| 3 Cores : Brown, Black, Grey | ||
| 4 Cores : Blue, Brown, Black, Grey | ||
| 5 Cores : Green/Yellow, Blue, Brown, Black, Grey | ||
| Above 5 Cores : White Cores with black numbers | ||
| Bedding | Single core | extruded layer of polymeric material |
| Multicore | a) extruded layer of polymeric materia | |
| b) or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having conductor area of 16mm² and above | ||
| Armour | Single Core : AWA (Aluminum Wire Armour) | |
| Multi Core : SWA (Steel Wire Armour) | ||
| Outer Sheath | Extruded PVC, type 9 specified in BS7655 | |
Technical Information
- Voltage rating: 600/1000V
- Temperature rating: 0°C to +90°C
- Bending radius: 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter - Flame retardant: IEC60332 part 1, BS4066 part 1
CABLE PARAMETER
| Nominal Cross-sectional Area | Strand Type | Nominal Insulation thickness | Nominal bedding thickness |
Nominal Steel Wire Armor dia. | Nominal Sheath thickness | Approx. OverallDiameter | AprroxWeight | |
| Extruded bedding | Taped bedding | |||||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
| 4x1.5 | 7/0.53 | 0.7 | 0.8 | 0.9 | 1.4 | 13.3 | - | 390 |
| 4x2.5 | 7/0.67 | 0.7 | 0.8 | 0.9 | 1.4 | 15.0 | - | 470 |
| 4x4 | 7/0.85 | 0.7 | 0.8 | 0.9 | 1.4 | 16.4 | - | 580 |
| 4x6 | 7/1.04 | 0.7 | 0.8 | 1.25 | 1.5 | 18.7 | - | 805 |
| 4x10 | 7/1.35 | 0.7 | 0.8 | 1.25 | 1.5 | 21.1 | - | 1090 |
| 4x16 | 7/1.70 | 0.7 | 0.8 | 1.25 | 1.6 | 23.4 | 23.4 | 1320 |
| 4x25 | 7/2.14 | 0.9 | 1 | 1.6 | 1.7 | 28.9 | 28.5 | 1840 |
| 4x25* | 7/2.14 | 0.9 | 1 | 1.6 | 1.7 | 26.1 | 25.7 | 1840 |
| 4x35 | 7/2.52 | 0.9 | 1 | 1.6 | 1.8 | 31.9 | 31.5 | 2310 |
| 4x35* | 7/2.52 | 0.9 | 1 | 1.6 | 1.8 | 28.6 | 28.2 | 2310 |
| 4x50* | 19/1.78 | 1.0 | 1 | 1.6 | 1.9 | 32.0 | 31.6 | 2970 |
| 4x70* | 19/2.14 | 1.1 | 1.2 | 2.0 | 2.1 | 37.7 | 36.9 | 4240 |
| 4x95* | 19/2.52 | 1.1 | 1.2 | 2.0 | 2.2 | 41.7 | 40.9 | 5400 |
| 4x120* | 37/2.03 | 1.2 | 1.4 | 2.5 | 2.3 | 47.1 | 45.9 | 7000 |
| 4x150* | 37/2.25 | 1.4 | 1.4 | 2.5 | 2.4 | 51.4 | 50.2 | 8350 |
| 4x185* | 37/2.52 | 1.6 | 1.4 | 2.5 | 2.6 | 56.6 | 55.4 | 10130 |
| 4x240* | 61/2.25 | 1.7 | 1.6 | 2.5 | 2.7 | 63.0 | 61.4 | 12840 |
| 4x300* | 61/2.52 | 1.8 | 1.6 | 2.5 | 2.9 | 68.8 | 67.2 | 15530 |
| 4x400* | 61/2.85 | 2 | 1.8 | 3.15 | 3.2 | 78.1 | 76.1 | 19950 |
