BS 5467 Armoured Power Cables, 600/1000V
Three-core 600/1000 V cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

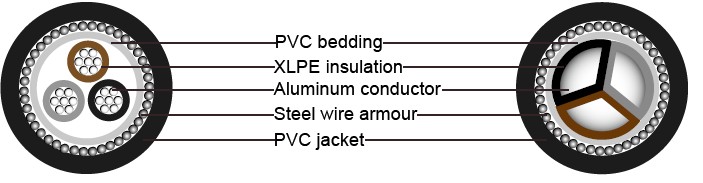

Construction
| Conductor | Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. | |
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) | |
| Colour Code | 1 Core : Brown | |
| 2 Cores : Brown or Blue | ||
| 3 Cores : Brown, Black, Grey | ||
| 4 Cores : Blue, Brown, Black, Grey | ||
| 5 Cores : Green/Yellow, Blue, Brown, Black, Grey | ||
| Above 5 Cores : White Cores with black numbers | ||
| Bedding | Single core | extruded layer of polymeric material |
| Multicore | a) extruded layer of polymeric materia | |
| b) or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having conductor area of 16mm² and above | ||
| Armour | Single Core : AWA (Aluminum Wire Armour) | |
| Multi Core : SWA (Steel Wire Armour) | ||
| Outer Sheath | Extruded PVC, type 9 specified in BS7655 | |
Technical Information
- Voltage rating: 600/1000V
- Temperature rating: 0°C to +90°C
- Bending radius: 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter - Flame retardant: IEC60332 part 1, BS4066 part 1
CABLE PARAMETER
| Nominal | Nominal Insula- | Nominal | Nominal Steel | Armour strip |
Nominal | Approx. Overall Diameter | Aprrox Weight |
|||
| Cross-sectional Area | tion thickness | bedding thickness |
Wire Armor dia. | thickness | width | Sheath thickness | wire armor | strip armor | Taped bedding |
|
| Extruded bedding | ||||||||||
| mm² | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 3x16 | 0.7 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 20.3 | 20.3 | 19 | 760 |
| 3x25* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 22.5 | 22.1 | 20.1 | 1020 |
| 3x25 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 24.9 | 24.5 | 22.5 | 1020 |
| 3x35* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 24.4 | 24.9 | 22 | 1200 |
| 3x35 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 27.3 | 26.9 | 24.9 | 1200 |
| 3x50* | 1.0 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 26.8 | 26.4 | 24.9 | 1380 |
| 3x70* | 1.1 | 1 | 1.6 | 1 | 3.6 | 1.9 | 30.2 | 29.8 | 28.6 | 1750 |
| 3x95* | 1.1 | 1.2 | 2.0 | 1 | 3.6 | 2.1 | 34.8 | 34.0 | 32 | 2420 |
| 3x120* | 1.2 | 1.2 | 2.0 | 1.4 | 4.8 | 2.2 | 37.8 | 37.0 | 35.8 | 2820 |
| 3x150* | 1.4 | 1.4 | 2.5 | 1.4 | 4.8 | 2.3 | 42.7 | 41.5 | 39.3 | 3660 |
| 3x185* | 1.6 | 1.4 | 2.5 | 1.4 | 4.8 | 2.4 | 46.7 | 45.5 | 43.3 | 4350 |
| 3x240* | 1.7 | 1.4 | 2.5 | 1.4 | 4.8 | 2.6 | 51.5 | 50.3 | 48.1 | 5220 |
| 3x300* | 1.8 | 1.6 | 2.5 | 1.8 | 6.4 | 2.7 | 56.2 | 54.6 | 53.2 | 6200 |
