BS 6724 Armoured Power Cables, 600/1000V

Five-core 600/1000 V cables with stranded copper conductors

Application

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

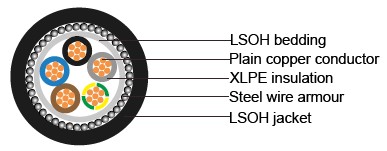

Construction

Conductor	Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation	XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
Colour Code	1 Core : Brown
	2 Cores: Brown or Blue
	3 Cores: Brown, Black, Grey
	4 Cores: Blue, Brown, Black, Grey
	5 Cores: Green/Yellow, Blue, Brown, Black, Grey
	Above 5 Cores: White Cores with black numbers
Bedding	LSOH (Low Smoke Zero Halogen)
Armour	Single Core: AWA (Aluminum Wire Armour)
	Multi Core: SWA (Steel Wire Armour)
Outer Sheath	LSOH (Low Smoke Zero Halogen)

Technical Information

Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
                          25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Halogen free IEC 60754, EN 50267
Smoke density IEC 61034, EN50268





Nominal Cross-sectional Area	Strand Type	Nominal Insulation Thickness	Nominal BeddingThickness	Nominal Steel Wire Armor dia.	Nominal Sheath Thickness	Approx.Overall Diameter	AprroxWeight
mm²	No./mm	mm	mm	mm	mm	mm	kg/km
5x1.5	7/0.53	0.6	0.8	0.9	1.4	14.3	430
5x2.5	7/0.67	0.7	0.8	0.9	1.4	16.1	545
5x4	7/0.85	0.7	0.8	0.9	1.5	17.8	680
5x6	7/1.04	0.7	0.8	1.25	1.5	20	840
5x10	7/1.35	0.7	0.8	1.25	1.6	22.9	1105
5x16	7/1.70	0.7	1	1.6	1.7	26.6	1450
5x25	7/2.14	0.9	1	1.6	1.8	31.5	2245
5x35	7/2.52	0.9	1	1.6	1.9	34.8	2840
5x50	19/1.78	1.0	1.2	2	2	40.4	3895
5x70	19/2.14	1.1	1.2	2	2.2	46.3	5145
