BS 6724 Armoured Power Cables, 600/1000V

Three-core 600/1000 V cables with solid aluminum conductors

Application

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

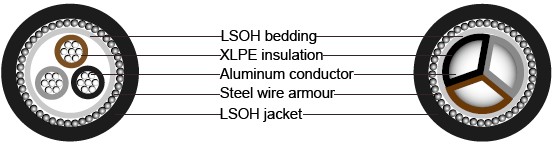

Construction

Conductor	Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation	XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
Colour Code	1 Core : Brown
	2 Cores: Brown or Blue
	3 Cores: Brown, Black, Grey
	4 Cores: Blue, Brown, Black, Grey
	5 Cores: Green/Yellow, Blue, Brown, Black, Grey
	Above 5 Cores: White Cores with black numbers
Bedding	LSOH (Low Smoke Zero Halogen)
Armour	Single Core: AWA (Aluminum Wire Armour)
	Multi Core: SWA (Steel Wire Armour)
Outer Sheath	LSOH (Low Smoke Zero Halogen)

Technical Information

Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
                          25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Halogen free IEC 60754, EN 50267
Smoke density IEC 61034, EN50268





Nominal Cross-sectional Area	Nominal Insulation Thickness	Nominal BeddingThickness	Nominal Steel Wire Armor dia.	Nominal Sheath Thickness	Approx.Overall Diameter	AprroxWeight
mm²	mm	mm	mm	mm	mm	kg/km
3x16	0.7	0.8	1.25	1.6	20.3	760
3x25	0.9	1	1.6	1.7	22.5	1020
3x25*	0.9	1	1.6	1.7	24.9	1020
3x35	0.9	1	1.6	1.8	24.4	1200
3x35*	0.9	1	1.6	1.8	27.3	1200
3x50*	1.0	1	1.6	1.8	26.8	1380
3x70*	1.1	1	1.6	1.9	30.2	1750
3x95*	1.1	1.2	2.0	2.1	34.8	2420
3x120*	1.2	1.2	2.0	2.2	37.8	2820
3x150*	1.4	1.4	2.5	2.3	42.7	3660
3x185*	1.6	1.4	2.5	2.4	46.7	4350
3x240*	1.7	1.4	2.5	2.6	51.5	5220
3x300*	1.8	1.6	2.5	2.7	56.2	6200
