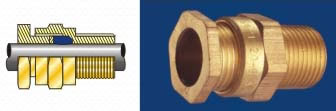

Single Compression A2 Type Weatherproof & Waterproof (IP66) Cable Glands for non armoured cables
Standards
EN 50262 : 1999, BS 6121 1989
Applications
Suitable for all types of unarmoured plastic or rubber sheathed cables for indoor as well as outdoor installations. It is used in applications where it is essential to provide an IP66 seal on the outer sheath of the cable.
Feature
Single compression for cable sheath.
Ingress Protection
IP66 (To IP68 if fi tted with a gasket).
Material
Brass BS 2874 CZ121 Pb3
Thread Option
ISO METRIC; NPT; BSP; PG or as specified
Seal Option
Neoprene; silicone
Plating Option
Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temperature
Standard seals: -20 °C to +80 °C (Neoprene Seals)
Extended seals: -60 °C to +180 °C (Silicone Seals)
Accessories
Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor
Ordering Code
(Gland Type / Size & Entry Thread Size), e.g. A2 32/M32 - 10mm

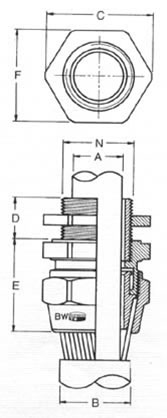

Technical Data
Part No. |
Entry Threads Size |
Overall Diameter. |
Overall Length "E" |
Hexagonal Dimensions |
|||
Metric |
Entry |
Max. |
Max. |
"F" |
"C" |
||
A2-20SS |
M20 |
10 |
3.0 |
8.0 |
18 |
25 |
28.5 |
A2-20S |
M20 |
10 |
7.0 |
11.0 |
18 |
25 |
28.5 |
A2-20 |
M20 |
10 |
11.0 |
14.5 |
20 |
27 |
30.0 |
A2-25 |
M25 |
10 |
14.5 |
20.5 |
25 |
35 |
38.5 |
A2-32 |
M32 |
10 |
20.5 |
26.5 |
25 |
42 |
48.0 |
A2-40 |
M40 |
15 |
26.5 |
34.5 |
28 |
52 |
59.0 |
A2-50 |
M50 |
15 |
34.5 |
43.5 |
30 |
65 |
72.0 |
A2-63 |
M63 |
15 |
43.5 |
56.0 |
35 |
82 |
97.0 |
A2-75 |
M75 |
15 |
56.0 |
65.0 |
40 |
96 |
112.0 |
A2-82 |
M82 |
15 |
65.0 |
74.0 |
50 |
100 |
113.0 |
A2-90 |
M90 |
15 |
73.0 |
82.0 |
59 |
100 |
113.0 |
