Single Compression BW Type Cable Glands for Armoured & Braided Cables
Standards
BS 6121: 1989
Applications
Suitable for all types of plastic or rubber sheathed single wire armoured cables. If is used in indoor applications not requiring the weatherproof feature of an inner or outer seal.
Feature
The gland provides mechanical cable retention & electrical wire continuity via armour wire termination. It provides an integral clamp for armoured cables. This armour clamp provides an electrical bond between the cable armour and the gland.
Ingress Protection
IP30
Material
Brass BS 2874 CZ121 Pb3
Thread Option
ISO METRIC; NPT; BSP; PG or as specified
Plating Option
Brass Finish, Nickel Finish, Chrome Finish or as specified.
Operating Temperature
-80 ℃ to +300 ℃
Accessories
Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor
Ordering Code
(Gland Type / Size & Entry Thread Size), e.g. BW 32/M32 – 10mm

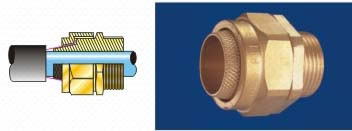

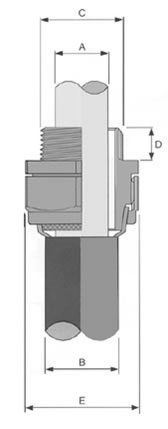

Technical Data
Part No. |
Entry Threads Size Metric "C" |
Entry Thread Length "D" |
Inner Cable Sheath Diameter "A" |
Outer Cable Sheath Diameter "B" |
Armour Wire Diameter |
Braid Wire Diameter |
Main Across Corner Diameter "E" |
BW-20S |
M20 |
10 |
11.6 |
16.1 |
0.9/1.25 |
0.05/0.8 |
24.4 |
BW-20 |
M20 |
10 |
13.9 |
21.1 |
0.9/1.25 |
0.05/0.8 |
30.0 |
BW-25 |
M25 |
10 |
19.9 |
27.4 |
1.25/1.60 |
0.05/0.8 |
36.0 |
BW-32 |
M32 |
10 |
26.2 |
34.4 |
1.60/2.00 |
0.05/0.8 |
44.5 |
BW-40 |
M40 |
15 |
32.1 |
42.4 |
1.60/2.00 |
0.05/1.2 |
56.3 |
BW-50S |
M50 |
15 |
38.1 |
50.1 |
2.00/2.50 |
0.05/1.2 |
63.4 |
BW-50 |
M50 |
15 |
44.0 |
55.7 |
2.00/2.50 |
0.05/1.2 |
72.1 |
BW-63S |
M63 |
15 |
50.0 |
62.4 |
2.50 |
0.05/1.2 |
83.7 |
BW-63 |
M63 |
15 |
55.9 |
68.2 |
2.50 |
0.05/1.2 |
88.7 |
BW-75S |
M75 |
15 |
61.9 |
76.8 |
2.50 |
0.05/1.2 |
99.8 |
BW-75 |
M75 |
15 |
67.9 |
82.9 |
2.50/3.15 |
0.05/1.2 |
105.3 |
