Single Compression CW Type Weatherproof & Waterproof (IP66) Cable Glands for Armoured & Braided Cables
Standards
EN 50262: 1999, BS6121 part1
Applications
Suitable for all types of unarmoured plastic or rubber sheathed cables for indoor as well as outdoor installations. If is used in applications where it is essential to provide an IP66 seal on the outer sheath of the cable.
Feature

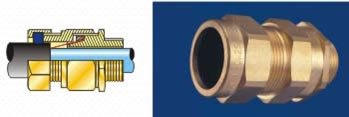

The gland provides an environmental seal on the cable outer sheath. If also provide mechanical cable retention & electrical continuity via armour wire termination. The armour clamp provides an electrical bond between the cable armour and the gland.
Ingress Protection
IP66
Material
Brass BS 2874 CZ121 Pb3
Thread Option
METRIC; NPT; BSP; PG or as specified
Seal Option
Neoprene; silicone
Plating Option
Brass Finish, Nickel Finish, Chrome Finish or as specified.
Operating Temperature
Standard seals: -20 ℃ to +80 ℃(Neoprene Seals)
Extended seals: -60℃ to +200℃(Silicone Seals)
Accessories
Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor
Ordering Code
(Gland Type / Size & Entry Thread Size), e.g. CW 32/M32 – 15mm

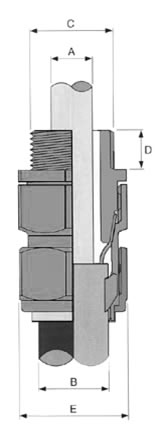

Technical Data
Part No. |
Entry |
Entry Thread Length "D" |
Seal Ranges |
Armour Wire |
Max. Across Corner Diameter "E" |
||||||
Inner Cable Sheath |
Outer Cable Sheath |
||||||||||
Metric |
NPT |
PG |
Standard Seal |
Thick Seal |
|||||||
Min. |
Max. |
Min. |
Max. |
||||||||
CW-16 |
M20 |
" |
11 |
15 |
8.6 |
8.0 |
13.4 |
5.5 |
9.9 |
0.9 |
24.4 |
CW-20S |
M20 |
" |
13.5 |
15 |
11.6 |
11.4 |
15.9 |
7.0 |
12.4 |
0.9/1.25 |
26.6 |
CW-20 |
M20 |
" |
16 |
15 |
13.9 |
15.0 |
20.9 |
11.1 |
17.9 |
0.9/1.25 |
33.3 |
CW-25 |
M25 |
3/4" |
21 |
15 |
19.9 |
20.3 |
27.4 |
15.0 |
23.9 |
1.25/1.60 |
40.5 |
CW-32 |
M32 |
1" |
29 |
15 |
26.2 |
26.0 |
33.9 |
23.0 |
29.9 |
1.60/2.00 |
51.0 |
CW-40 |
M40 |
1-1/4" |
36 |
15 |
32.1 |
31.0 |
40.4 |
26.6 |
35.9 |
1.60/2.00 |
61.0 |
CW-50S |
M50 |
1-1/2" |
36 |
15 |
38.1 |
36.5 |
46.7 |
32.9 |
42.4 |
2.00/2.50 |
66.5 |
CW-50 |
M50 |
2" |
42 |
15 |
44.0 |
43.0 |
53.1 |
30.3 |
49.9 |
2.00/2.50 |
77.7 |
CW-63S |
M63 |
2" |
48 |
15 |
50.0 |
48.9 |
59.4 |
44.6 |
55.9 |
2.50 |
83.2 |
CW-63 |
M63 |
2-1/2" |
- |
15 |
55.9 |
58.0 |
65.9 |
51.5 |
58.9 |
2.50 |
86.7 |
CW-75S |
M75 |
2-1/2" |
- |
15 |
61.9 |
60.6 |
72.1 |
56.4 |
68.9 |
2.50 |
101.6 |
CW-75 |
M75 |
3" |
- |
15 |
67.9 |
64.9 |
78.5 |
62.7 |
74.9 |
2.50/3.15 |
111.1 |
CW-90 |
M90 |
3-1/2" |
- |
- |
79.3 |
76.0 |
90.4 |
64.2 |
79.3 |
3.15 |
128.6 |
