1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite Cable

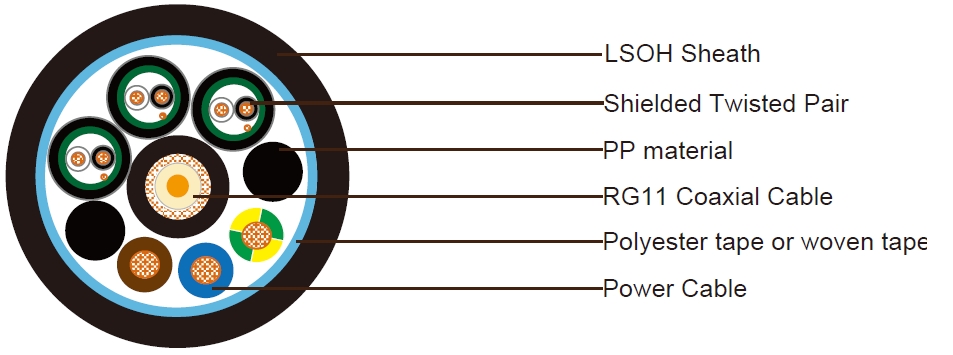

Construction
1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)
| Conductor | 1.63mm Solid bare copper |
| Insulation | Polyethylene.Thickness 7.25mm. |
| Shield | Braid of bare copper wire.Coverage95% |
| Sheath | LSZH sheath. Nominal outer diameteris10.3mm. |
| Sheath Color | Black |
3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.254mm Stranded tinned copper. |
| Insulation | PVC material.Thickness 0.50mm. |
| Insulation Color | White andblack |
| Individual Shield | Aluminum polyester tape |
| Drain Wire | 24AWG |
| Sheath | PVC sheath.Nominal outer diameter 4.8mm.Thickness0.76mm. |
| Sheath Color | Black with white number code |
3x2.5mm^2 Power Cable ( around coaxial cable)
| Conductor | 2.5mm^2 Stranded tinned copper wire. |
| Insulation | XLPE.Outer diameter3.41mm |
| Insulation Color | Blue,Brown and Green/Yellow |
Element Assembly
| Filler | PP material(around coaxial cable) |
| WrappingTape | Polyester tape or woven tape |
| Outer Sheath | PVC,thickness1.6mm,nominal outer diameter 25.0mm |
| Sheath Color | Black |
| Cable weight | 480kg/km |
Electrical and Physical Properties@20°C
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Max.Attenuation:3.3dB/100m @50MHz
Power Cable
- Electrical Resistance: 7.41Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
- Electrical Resistance: 49Ohm/km
- Insulation Resistance: ≥1000 MOhmxkm
