1xRG59 + 2x1x2x22AWG Data Cable Unarmored LSZH Sheathed Composite Cable

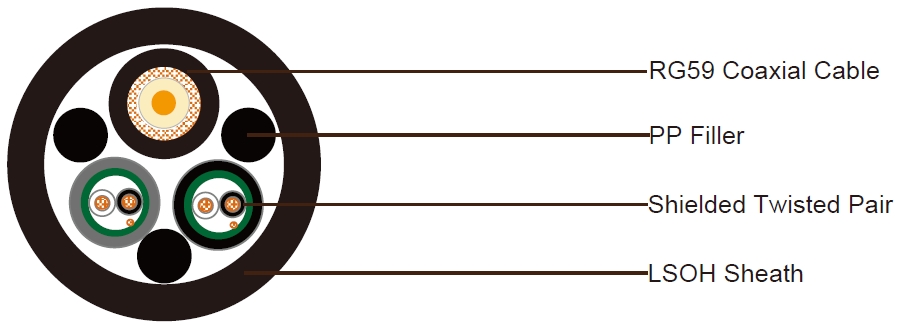

Construction
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 85% |
| Sheath | LSZH sheath. Nominal outer diameter 6.2mm |
| Sheath Color | Black |
2x1x2x22AWG Shielded Twisted Pair (around coaxial cable)
| Conductor | 7/0.254mm |
| Insulation | PE material.Thickness0.4mm |
| Insulation Color | Black and white |
| Shield | Aluminium polyester tape |
| Drain Wire | 7/0.2mm drain wire |
| Sheath | LSZH sheath. Nominal outer diameter 4.8mm. |
| Sheath Color | Black and Grey |
Element Assembly
| Filler | PP material |
| Outer Sheath | LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 15.6mm |
| Sheath Color | Black |
Electrical and Physical Properties@20°C
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Nominal Attenuation: 8.2dB/100m @50MHz
Data Cable
- Electrical Resistance: 48.4Ohm/km
Element Assembly
- Min Bending Radius: 420mm
- Operating Temperature: -35°C/+80°C
Fire Performance
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
- Flame Propagation: IEC60332
