1x RG59 + 7x1x2x22AWG Data Cable + 3x16 AWG Power Cable TCWB FRPVC Sheathed Composite Cable

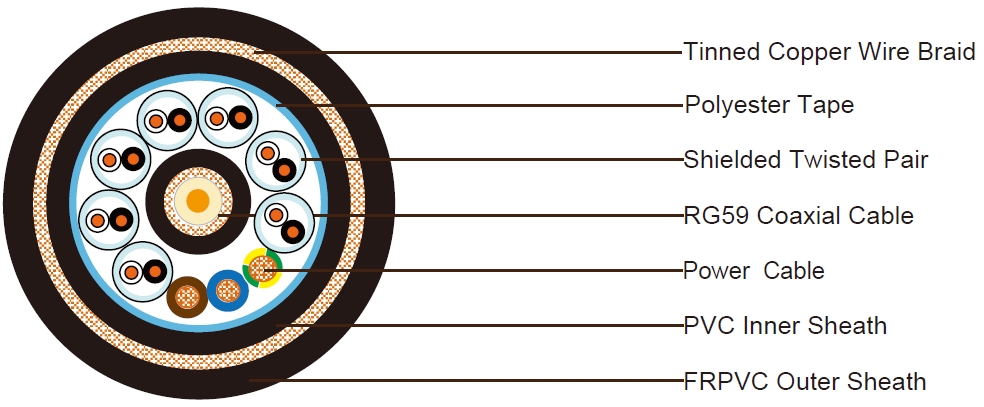

Construction
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | LSZH sheath. Nominal outer diameter 6.15mm |
| Sheath Color | Black |
7x1x2x22 AWG Shielded Twisted Pair Data Cables
| Conductor | 7/0.254mm |
| Insulation | PE material. Thickness 0.6mm |
| Insulation Color | Black and white with numbering |
| Individual Shield | Aluminium polyester tape with 24 AWG drain wire |
3x16AWG Power Cable
| Conductor | 16AWG wire |
| Insulation | XLPE. Thickness 0.7mm |
| Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PP material if necessary |
| Wrapping Tape | Polyester tape |
| Shield | Tinned copper wire braid, coverage 80% |
| Outer Sheath | UV resisting FRPVC, thickness 1.8mm, norminal outer diameter 25.0mm |
| Sheath Color | Black |
| Cable Weight | 850kg/km |
Electrical and Physical Properties@20°C
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Nominal Attenuation: 7.5dB/100m @50MHz
Power Cable
- Electrical Resistance: 6.6Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
- Electrical Resistance:90Ohm/km
- Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
- Min Bending Radius: 420mm
- Operating Temperature: -35°C/+80°C
Fire Performance
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
- Flame Propagation: IEC60332
