1C Coaxial Cable + 12 Core Conductors TCWB PVC Sheathed Composite Cable

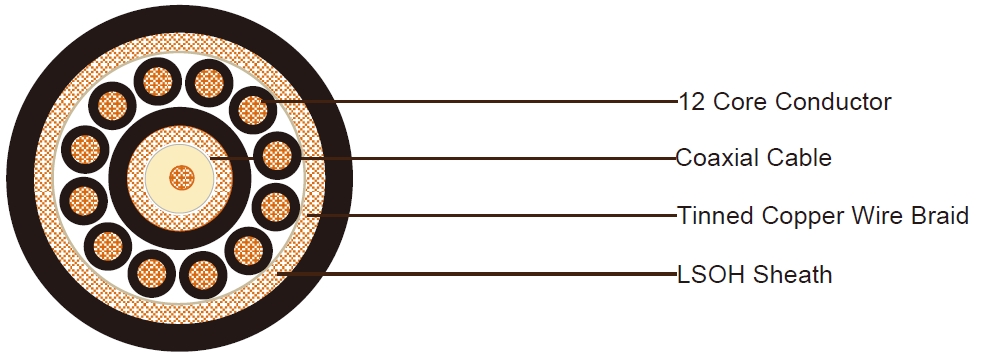

Construction
1x75Ohm Coaxial Cable
| Conductor | 7/0.254mm wires |
| Insulation | Foamed polyethylene. Thickness is 1.46mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | PVC sheath. Nominal outer diameter: 5.28mm |
| Sheath Color | Black |
12 Core Conductor
| Conductor | 7/0.32mm wires |
| Insulation | PVC material. Thickness is 0.4mm |
| Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
| Shield | Tinned copper wire braid, coverage 80% |
| Outer sheath | LSZH, thickness 0.8mm, nominal outer diameter is 11.05mm |
| Sheath Color | Black |
Electrical and Physical Properties@20°C
Coaxial Cable
- Nom. Impedance: 75Ohm
- Nom. Capacitance Conductor to Shield: 56.7pF/m (17.3pF/ft)
- Nom. Velocity of Propagation: 78%
- Nom. Delay: 4.26ns/m (1.3ns/ft)
- Nom. Conductor DC Resistance: 0.047 Ohm/m (14.4 Ohm/1000ft)
- Nom. Inner Shield DC Resistance: 0.0084 Ohm/m (2.55 Ohm/1000ft)
- Nom. Attenuation:
| Freq. (MHz) | Attenuation (dB/100m) | Attenuation (dB/100ft)) |
|---|---|---|
| 0.5 | 0.8 | 0.24 |
| 1 | 1.1 | 0.34 |
| 5 | 2.4 | 0.73 |
| 10 | 3.4 | 1.04 |
| 100 | 10.6 | 3.23 |
| 200 | 15.3 | 4.67 |
| 400 | 21.69 | 6.62 |
12C Conductor
- Max. Operating Voltage: 300V
Element Assembly
- Max. Operating Voltage (overall): 300V
- Operating Temperature Range: -30°C to +75°C
- Min Bending Radius: 127mm
