1x2x2.5 Power Cable + 9x1x2x1.0 Control Cable Unarmored PVC Sheathed Composite Cable
Construction
1x2x2.5mm^2 Power Cable
| Conductor | 2.5mm^2 annealed copper |
| Insulation | XLPE |
| Insulation Color | Black and white |
9x1x2x1.0mm^2 Control Cable
| Conductor | 1.0mm^2 annealed copper |
| Insulation | PE material |
| Insulation Color | Black and white with pair number |

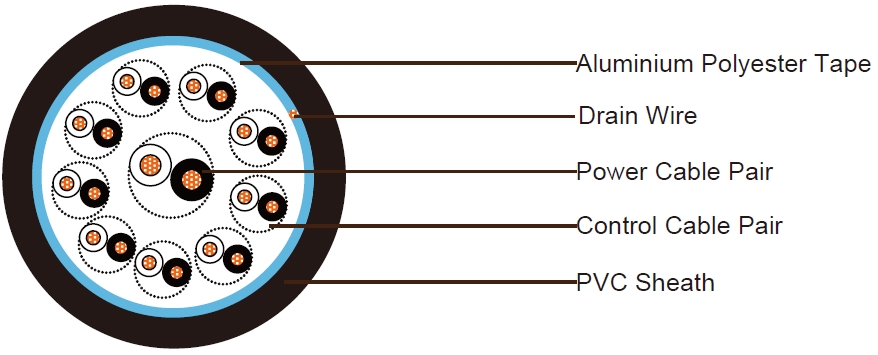

Element Assembly
| Shield | Aluminium polyester tape |
| Drain wire | 24 AWG drain wire |
| Outer Sheath | PVC sheath. Nominal outer diameter 25.5mm. Thickness 1.8mm |
| Sheath Color | Black |
| Weight | 477kg/km |
Electrical and Physical Properties@20°C
Power Cable
- Conductor: 7.41Ohm/km at 20oC
Control Cable
- Conductor Resistance:18.5Ohm/km at 20oC
- Operating Temperature: -20°C/+90°C
- Voltage Rating: 600/1000V
