1x RG11 + 3x2.5 Power Cable + 4x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

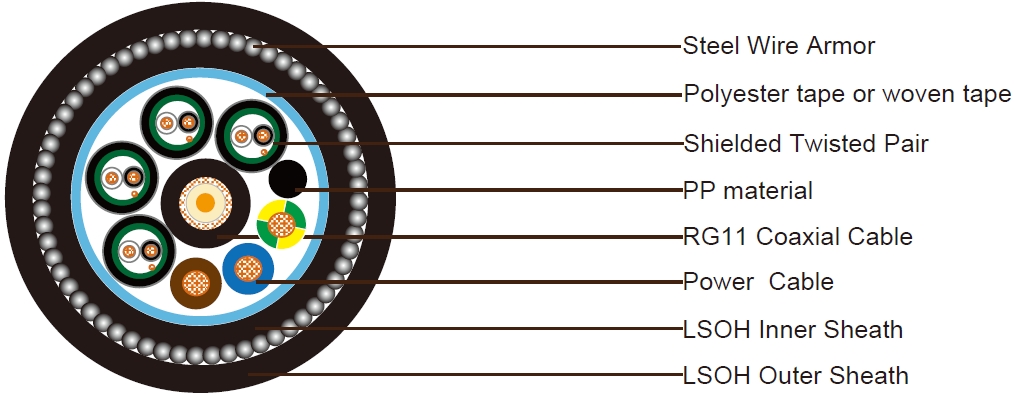

Construction
1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)
| Conductor | 1.63mm Solid bare copper |
| Insulation | Polyethylene.Thickness 7.25mm. |
| Shield | Braid of bare copper wire.Coverage95% |
| Sheath | PVCsheath. Nominal outer diameter is10.3mm. |
| Sheath Color | Black |
4x1x2x24AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.2mm . |
| Insulation | PVC material. Thickness 0.5mm. |
| Insulation Color | White and black |
| Individual Shield | Aluminum polyester tape |
| Drain Wire | 24 AWG |
| Sheath | LSZH sheath. Thickness 0.80mm. |
| Sheath Color | Black with white number code |
3x2.5mm^2 Power Cable ( around coaxial cable)
| Conductor | 2.5mm^2 Stranded tinned copper wire. |
| Insulation | XLPE..Outer diameter3.41mm |
| Insulation Color | Blue,Brown and Green/Yellow |
Element Assembly
| Filler | PP material (around coaxial cable) |
| Wrapping Tape | Polyester tape or woven tape |
| Inner Sheath | Black LSZH, thickness 1.1mm |
| Armor | Steel wire armor,dia. 1.25mm |
| Outer Sheath | LSZH, thickness 1.8mm, nominal outer diameter 26.0±1.0mm |
| Sheath Color | Black |
| Cable Weight | 1100kg/km |
Electrical and Physical Properties@20°C
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Max.Attenuation:3.3dB/100m @50MHz
Power Cable
- ElectricalResistance:7.41Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
- Electrical Resistance: 90Ohm/km
- Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
- Conductor DC resistance per km@20°C:
- 24AWG: 95.8ohm/km 2.5mm^2: 7.4ohm/km 1.63mm: 9.26ohm/km
- Minimum Bending Radius: 312mm
- Temperature Range: -10°C~70°C
Fire Performance
- Flame Propagation:IEC60332-1
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
