1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG & Mud Resistant Composite Cable Data Pairs SWB LSZH Sheathed Fire Resistant

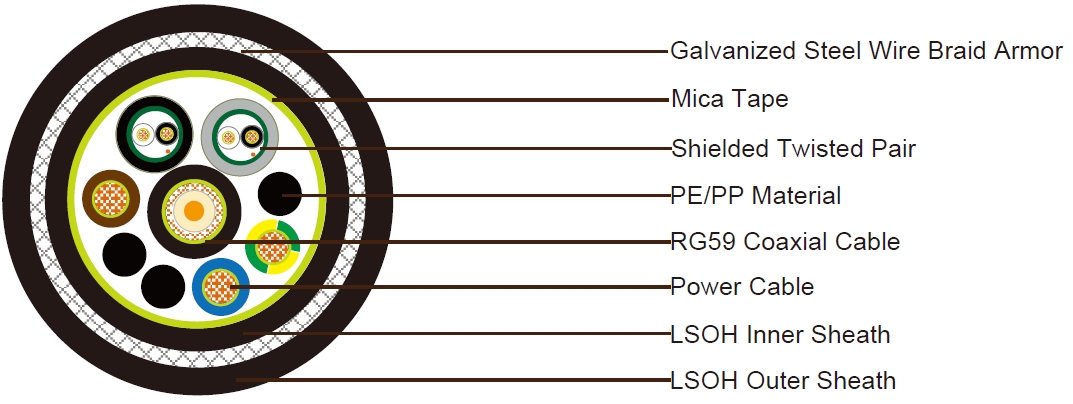

Construction
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Fire Barrier | Mica tape |
| Sheath | FRLSZH sheath. Nominal outer diameter 6.7mm |
| Sheath Color | Black |
2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)
| Conductor | 7/0.2mm |
| Fire Barrier | Mica tape |
| Insulation | PVC material. Thickness 0.7mm |
| Insulation Color | Black and white with numbering |
| Shield | Aluminium polyester tape with 24 AWG drain wire |
| Sheath | FRLSZH sheath. Nominal outer diameter 8.5mm. Thickness 0.8mm |
| Sheath Color | Black and Grey |
3x2.5mm^2 Power Cable ( around coaxial cable)
| Conductor | 2.5mm^2 wire |
| Fire Barrier | Mica tape |
| Insulation | XLPE. Nominal outer diameter 4.2mm |
| Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PP material if necessary |
| Fire Barrier | Mica tape |
| Inner Sheath | Black FRLSZH, thickness 1.5mm |
| Armor | Galvanized steel wire braid, coverage 95% |
| Outer Sheath | FRLSZH, thickness 1.5mm, nominal outer diameter 31.0±2.0mm |
| Sheath Color | Black |
Electrical and Physical Properties@20°C
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Nominal Attenuation: 7.5dB/100m @50MHz
Power Cable
- Electrical Resistance: 12.1Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
- Electrical Resistance:90Ohm/km
- Insulation Resistance: ≥200 MOhmxkm
Element Assembly
- Min Bending Radius: 420mm
- Operating Temperature: -30°C/+80°C
Fire Performance
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
- Flame Propagation: IEC60332
- Fire Resistant: IEC60332-21
- Mud Resistant & other properties could be met upon request
