3x2.5 Power Cable + 12C Fiber Optic Cable SWA LSOH Sheathed Composite Cable

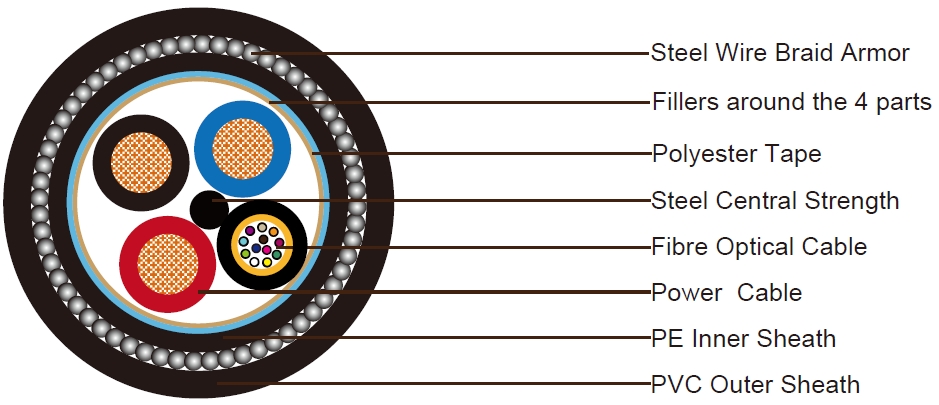

Construction

3x2.5mm^2 Power Cable

Conductor	7/0.67mm Stranded bare copper wire
Insulation	XLPE. Thickness is 0.7mm. Outer diameter 3.41mm

12C Fiber Cable

No of fibers in loose tube	12 fibers
Loose tube	outer diameter: 2.2+/-0.2mm (Aramid yarn &PE Sheath would be used over the loose tube)

Element Assembly

Central Strength Member	Steel central strength member with PE/PVC coating if necessary
Filler	PP material if necessary
Wrapping Tape	Polyester tape or woven tape
Inner Sheath	PE, LSOH is optional, thickness is 1.0mm
Armor	Steel wire armour
Outer Sheath	PE, LSOH is optional, thickness is 1.8mm, nominal outer diameter16.2±2.0mm
Sheath Color	Black.

Optical Characteristics

Property Attenuation @ 850 nm (dB/km)	50/125 fibers ≤ 3.0	62.5/125 fibers ≤ 3.2
Attenuation @ 1300 nm (dB/km)	≤ 1.0	≤ 1.2
Added Attenuation with Bending	≤ 0.5 dB (850 and 1300 nm) for 100 turns around a 75 mm mandrel
Numerical Aperture	0.20 ± 0.02	0.275 ± 0.015
Bandwidth @ 850 nm	400 MHz*km	160 MHz*km
Bandwidth @ 1300 nm	800 MHz*km	500 MHz*km
Core diameter	50 ± 3 um	62.5 ± 3 um
Cladding diameter	125 ± 2 um
Core-Cladding offset	≤ 6%
Cladding non-circularity	≤ 2%
Core non-circularity	≤ 6%
Coating diameter	245 ± 10 um
Coating / Cladding offset	12 um
Proof Test	≥ 0.69 GN/m2 (100 kpsi)

Mechanical Properties

Tensile load

• Operating: 3000N
• Installation: 5000N

Bending radius

• Operating: 15×OD
• Installation: 28×OD

Compressive load

• Short term: 5500N
• Long term: 3500N
