Cat3e+3x16AWG Power Cable LSZH Sheathed Unarmored Composite Cable

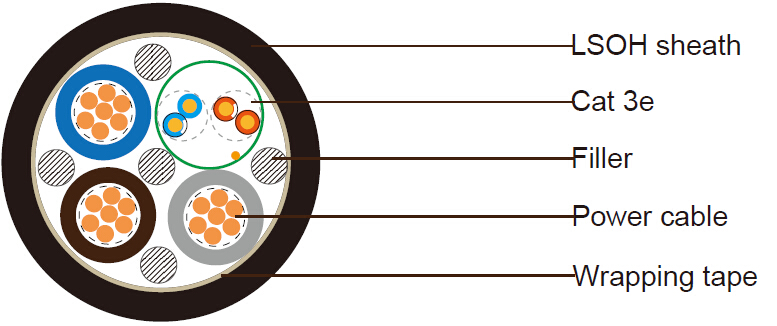

Construction
CAT3E 2x2x24AWG
| Conductor | 1/1.5mm Solid copper conductor |
| Insulation | Polyethylene, nominal thickness 0.2mm |
| Insulation Color | 1st Pair: Blue White / Blue Stripe 2nd Pair: Orange White / Orange Stripe |
| Overall screen | 100% Al/polyester foil screen with 0.5mmsq tinned copper drain wire. A 23 micron polyester tape is applied over the screening tape with a minimum 25% overlap, Nominal outer diameter 3.15mm |
3x16AWG Power Cable
| Conductor | 7/0.49mm wire |
| Insulation | XLPE. Nominal thickness 0.6mm, overall diameter 2.7mm |
| Insulation Color | Blue, Brown and Grey, or as per client's requirement |
Element Assembly
| Wrapping Tape | Polyester tape or woven tape with PE or PP material filler(optional) |
| Outer Sheath | LSZH, thickness 1.2mm, nominal outer diameter 10.6±2.0mm |
| Sheath Color | Black. |
Electrical and Physical Properties @20°C
Power Cable
- Temperature rating: -20 to +90 ℃
- Minimum bending radius: 6 x Overall diameter
- Nom. conductor resistance at 20 ℃:
- Power core: ≤14.7Ohm/Km
- Data core: ≤89.3 Ohm/Km
- Rated voltage: 300V
- Test voltage: 1000V
Bending radius
- Operating: 15×OD
- Installation: 28×OD
Fire Performance
- Flame retardant: IEC60332 -1
