4x16 Power Cable +15x1 Control Cable, PUR Sheathed Elevator Composite Cable

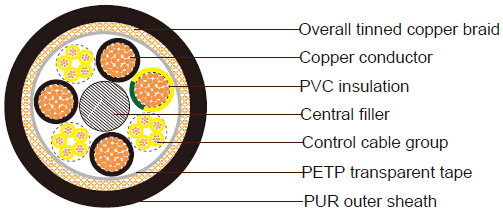

Construction
3 x 16mm2 Power Cable
| Conductor | 16mm2 (564/0.2mm) stranded copper wire |
| Insulation | PVC compound. Weather resistant, flame retardant, oil resistant and UV resistant. Nominal thickness 1.4mm |
| Insulation Color | Three black cores and one green/yellow |
15 x 1mm2 Power Cable
| Conductor | 1mm2 (126/0.1mm) stranded copper wire |
| Insulation | PVC compound. Weather resistant, flame retardant, oil resistant and UV resistant. Nominal thickness 0.65mm. |
| Insulation Color | Yellow, 3 groups |
Element Assembly
| Filler | Non-absorbent Polypropylene |
| Overall Screen | Tinned copper braid shield |
| Sheath | PUR, thickness 3.2mm, nominal outer diameter 29.7±1.0mm |
| Sheath Color | Black |
Electrical and Physical Properties @20°C
Power Cable
Rated Voltage: 600/1000V
Control Cable
Rated Voltage: 250V
Assembly
- Operating Temperature: -45°C/+90°C(fixed installation); -35°C/+90°C(flexible installation)
- Min Bending radius: 4 x OD(fixed installation); 7.5 x OD (moble installation, speed <10m/s); 10 x OD (moble installation, speed >10m/s)
- Bending Cycles: ≥8,000,000 times
Fire Characteristics
Flame Propagation: IEC60332-1, CEI 20-35 FT1
