1xRG6 + 3x2.5 Power cable + 2x1x2x22AWG Data Pairs SWB LSZH Sheathed Composite Cable

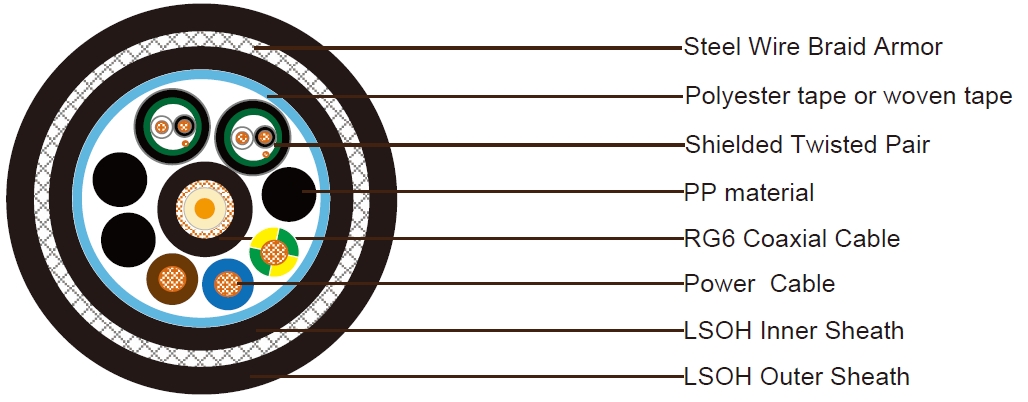

Construction
1x75Ohm RG6 Coaxial Cable
| Conductor | 1.02mm Solid bare copper |
| Insulation | Polyethylene. Diameter 4.57mm. |
| Shield 1 | Al-Polyester Tape |
| Shield 2 | Braid of bare copper wire. Coverage:95% |
| Sheath | LSZH sheath. Nominal outer diameter is 6.91mm. |
| Sheath Color | Black |
2x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.254mm . |
| Insulation | PVC material. Thickness 0.50mm. |
| Insulation Color | White and black |
| Individual Shield | Aluminum polyester tape |
| Drain Wire | 24 AWG |
| Sheath | LSZH sheath. Thickness 0.5mm. |
| Sheath Color | Black with white number code |
3x2.5mm^2 Power Cable ( around coaxial cable)
| Conductor | 2.5mm^2 wire. |
| Insulation | XLPE. Outer diameter 3.6mm |
| Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PE or PP material |
| Wrapping Tape | Polyester tape or woven tape |
| Inner Sheath | Black LSZH, thickness 0.75mm |
| Armor | Steel wire braid, dia. 0.2mm, coverage 95% |
| Outer Sheath | LSZH, thickness 1.5mm, nominal outer diameter 21.0mm. Approx. |
| Sheath Color | Black |
| Cable Weight | 485kg/km |
Electrical and Physical Properties@20°C
Coaxial Cable
- Conductor Resistance @ 20°C : 22 ohm/km
- Impedance: 75±3Ohm (@1MHz)
- Max. Attenuation: 5.2dB/100m @50MHz
Power Cable
- Electrical Resistance: 7.41Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
- Electrical Resistance: 49Ohm/km
- Insulation Resistance: ≥1000 MOhmxkm
