2X0.75mm2 Audio Cable + Cat5e F/UTP LSZH Sheathed Unarmoured Composite Cable

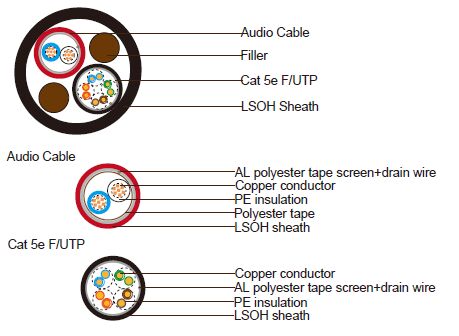

Construction

2C x0.75mm^2 Audio Cable

CONDUCTOR	0.75mm2 stranded copper wire, class 5 to IEC60228.
INSULATION	PE. Nominal thickness 0.6mm.
INSULATION COLOR	White and blue.
SCREEN	Alumminum tape with tinned copper drain wire.
SHEATH	LSZH sheath. Nominal thickness 1.0 mm.
SHEATH COLOR	Red.
GGENERAL STANDA R D	Basic design to EN50288-7.

Cat 5e F/UTP

CONDUCTOR	Cat 5e F/UTP
INSULATION	PE material. Nominal diameter is 0.91mm.
INSULATION COLOR	White-orange,Orange;White-blue,Blue;
	White-green,Green;White-brown,Brown.
SCREEN	LSZH sheath. Nominal overall diameter is 6.7 mm.
SHEATH	LSZH sheath. Nominal thickness 0.76 mm. Overall diameter 4.8mm
SHEATH COLOR	Black or Grey or Blue. Other colors also available upon request.
APPLICA T I O N S	IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;
	IEEE 802.5 16 MB; ISDN; TPDDI; ATM.
STANDARDS	ISO/IEC 11801, ANSI/TIA/EIA 568B.

Element Assembly

FILLER	PE material.
WRAPPING TAPE	Polyester tape or woven tape.
OUTER SHEATH	LSZH. Nominal thickness 1.8mm.
SHEATH COLOR	Black. Other colors also available upon request.

Electrical and Physical Properties@20°C

AUDIO CABLE

Max.Electrical Resistance: 26 Ohm/km
Min. Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+90°C
Voltage rating: 300/500V

CAT5E F/UTP(1-100MHZ)

Max.Electrical Resistance: 93.8 Ohm/km
Min.Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+90°C
Max.Resistance Unbalance: 5%
Max. Mutual Capacitance: 5.6nF/100m
Max. Capacitance Unbalance: 330pF/100m
Characteristic Impedance : 100 ± 15 (1-100MHz)
Nominal Velocity of Propagation: 69%
Max. Propagation Delay : 536ns/100m@100MHz
Max.Propagation Delay skew : 30ns/100m
