1xRG59 + 3x2.5 Power Cable + 2P24AWG RS485 Galvanized Steel Wire Braid Armor FRLSOH Sheathed Composite Cable
Construction
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 85% |
| Sheath | FRLSZH sheath. Nominal outer diameter 6.2mm |
| Sheath Color | Black |
2 Pair 24AWG RS485
| Conductor | 7/0.2mm stranded tinned copper |
| Insulation | Foam PE material. Thickness 0.6mm |
| Insulation Shield | Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
| Overall Shield | Tnned copper wire braiding, Coverage ≥ 85% |
| Sheath | FRLSOH sheath. Nominal outer diameter is 9.0mm |
| Sheath Color | Black |
3x2.5mm^2 Power Cable
| Conductor | 2.5mm^2 7/0.67mm stranded tinned copper wire |
| Insulation | XLPE. Thickness 0.7mm, Nominal outer diameter is 3.44mm |
| Insulation Color | Blue, Black and Green/Yellow |

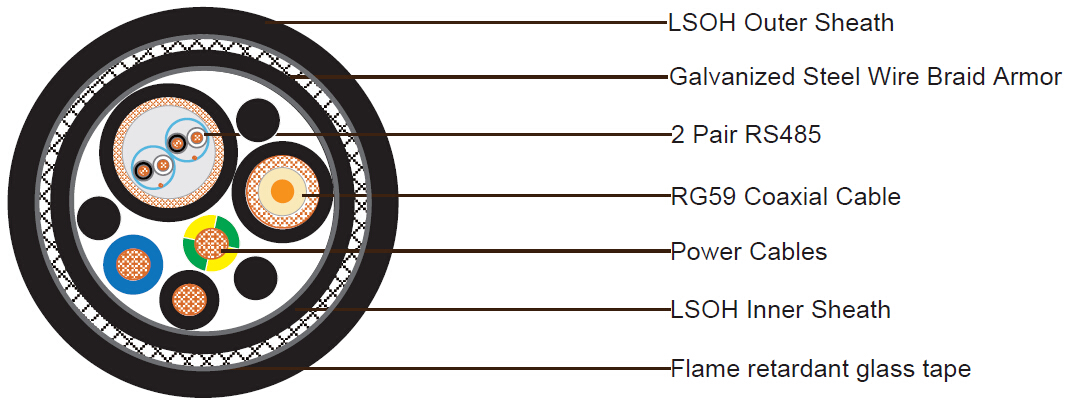

Element Assembly
| Filler (optional) | PP or PE |
| Wrapping | Flame retardant glass fiber tape |
| Inner Sheath | Black FRLSOH |
| Armor | 0.2mm galvanized steel wire braid |
| Outer Sheath | LSOH with flame retardant glass tape inside - water resistant - oil resistant - sunlight and UV resistant - aliphatic hydrocarbon resistant - gas / vapour tight - shall burn without releasing any toxic gases. Thickness 1.7mm. Nominal overall diameter 22.5+/-2mm |
| Sheath Color | Black or grey |
Electrical and Physical Properties@20°C
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Nominal Attenuation: 8.2dB/100m @50MHz
Power Cable
- Electrical Resistance: 7.56Ohm/km
- Min Insulation Resistance: 1000 MOhm/km
- Voltage rating: 0.6/1KV
RS485
- Nominal Impedance: 120±10Ω
- Nominal Conductor DC Resistance @20°C: 82.0 Ohm/km
- Nominal Attenuation: 1MHz 2.3dB/100m
Cable Assembly
- Min Bending Radius: 420mm
- Operating Temperature: -30°C/+80°C
Fire Performance
- Low Smoke Capacity: IEC61034-1/2
- Halogen Free: IEC60754-1/2
- Flame Propagation: IEC60332
