FG7R
Fire retardant, LSF power, control and signalling cables,insulated in type G7 elastomeric compound and pvc sheathed with flexible conductors for fixed installation.
Normative references
| Italian standard: | CEI 20-13 | UNEL 35375 | ||||
| UNEL 35377 (FG7OR over 7 cond.) | ||||||
| Colours code: | CEI UNEL 00722/ HD 308 | |||||

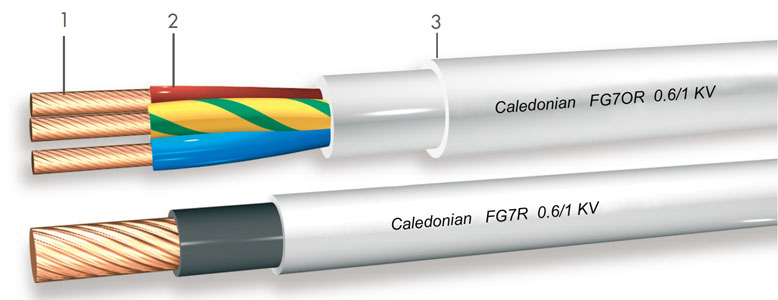

Construction
- 1 - Flexible copper class 5 CEI EN 60228
- 2 - HEPR elastomeric compound type G7
- 3 - PVC Rz
Characteristics
- Rated voltage: 0.6/1 KV
- Operating Temperature: -25°C - +90° C on the conductor
- Max. temperature of short circuit: 250° C on the conductor (max. duration 5 seconds)
- Min. bending radius: UNEL 35375: 4 x outer diameter UNEL 35377: 6 x outer diameter
| Section | Max diam. conductor |
Insulation thickness |
sheath thickness | Outer diameter | Max cond. resist. at 20°C |
Cable weight |
| mm2 | mm | mm | mm | mm | ohms/km | kg/km |
| FG7R | ||||||
| 1x1.5 | 0.26 | 0.7 | 1.4 | 6.0 | 13.3 | 55 |
| 1x2.5 | 0.26 | 0.7 | 1.4 | 6.4 | 7.98 | 65 |
| 1x4 | 0.31 | 0.7 | 1.4 | 6.9 | 4.95 | 85 |
| 1x6 | 0.31 | 0.7 | 1.4 | 7.5 | 3.30 | 105 |
| 1x10 | 0.41 | 0.7 | 1.4 | 8.4 | 1.91 | 155 |
| 1x16 | 0.41 | 0.7 | 1.4 | 9.6 | 1.21 | 210 |
| 1x25 | 0.41 | 0.9 | 1.4 | 11.2 | 0.78 | 310 |
| 1x35 | 0.41 | 0.9 | 1.4 | 12.2 | 0.554 | 410 |
| 1x50 | 0.41 | 1 | 1.4 | 13.9 | 0.386 | 560 |
| 1x70 | 0.51 | 1.1 | 1.4 | 16.0 | 0.272 | 770 |
| 1x95 | 0.51 | 1.1 | 1.5 | 17.7 | 0.206 | 990 |
| 1x120 | 0.51 | 1.2 | 1.5 | 19.7 | 0.161 | 1250 |
| 1x150 | 0.51 | 1.4 | 1.6 | 21.8 | 0.129 | 1550 |
| 1x185 | 0.51 | 1.6 | 1.6 | 23.9 | 0.106 | 1900 |
| 1x240 | 0.51 | 1.7 | 1.7 | 26.4 | 0.0801 | 2450 |
| 1x300 | 0.51 | 1.8 | 1.8 | 28.9 | 0.0641 | 3000 |
| 1x400 | 0.51 | 1.9 | 1.9 | 35.0 | 0.0486 | 4000 |
| 1x500 | 0.51 | 2.2 | 2.1 | 39.5 | 0.0384 | 5000 |
| 1x630 | 0.51 | 2.4 | 2.2 | 44.0 | 0.0287 | 6600 |
| FG7OR | ||||||
| 2x1.5 | 0.26 | 0.7 | 1.8 | 10.1 | 13.30 | 155 |
| 2x2.5 | 0.26 | 0.7 | 1.8 | 10.9 | 7.98 | 190 |
| 2x4 | 0.31 | 0.7 | 1.8 | 11.9 | 4.95 | 240 |
| 2x6 | 0.31 | 0.7 | 1.8 | 13.1 | 3.30 | 310 |
| 2x10 | 0.41 | 0.7 | 1.8 | 15.3 | 1.91 | 460 |
| 2x16 | 0.41 | 0.7 | 1.8 | 17.3 | 1.21 | 620 |
| 2x25 | 0.41 | 0.9 | 1.8 | 20.5 | 0.780 | 900 |
| 2x35 | 0.41 | 0.9 | 1.8 | 22.9 | 0.554 | 1200 |
| 2x50 | 0.41 | 1 | 1.8 | 26.1 | 0.386 | 1650 |
| 3x1.5 | 0.26 | 0.7 | 1.8 | 10.6 | 13.3 | 175 |
| 3x2.5 | 0.26 | 0.7 | 1.8 | 11.4 | 7.98 | 220 |
| 3x4 | 0.31 | 0.7 | 1.8 | 12.5 | 4.95 | 280 |
| 3x6 | 0.31 | 0.7 | 1.8 | 13.8 | 3.30 | 365 |
| 3x10 | 0.41 | 0.7 | 1.8 | 16.2 | 1.91 | 550 |
| 3x16 | 0.41 | 0.7 | 1.8 | 18.3 | 1.21 | 760 |
| 3x25 | 0.41 | 0.9 | 1.8 | 21.8 | 0.780 | 1100 |
| 3x35 | 0.41 | 0.9 | 1.8 | 24.3 | 0.554 | 1500 |
| 3x50 | 0.41 | 1 | 1.8 | 27.8 | 0.386 | 2050 |
