Tight Buffer Distribution PVC/LSZH Jack Cables
Application
This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.
Description

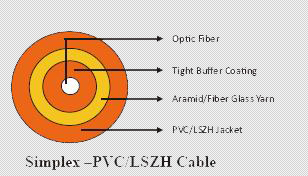

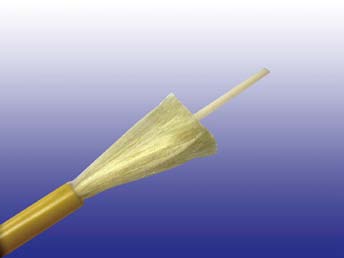

Simplex
Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

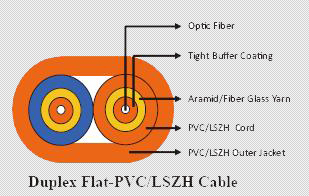

Duplex Flat
Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

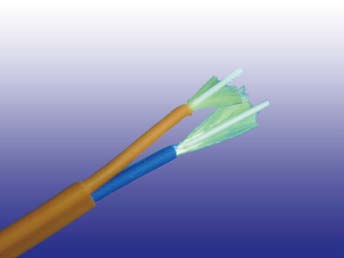

Duplex Round
Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

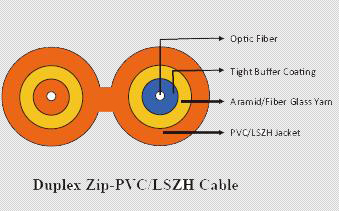

Duplex Zip
Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a Āzipcordā construction. The cable is unconnectorized.
Construction
 |
|
 |
 |
 |
 |
 |
 |
Physical Properties
| Fiber Count | Cable Type | Nominal Weight(kg/km) | Nominal Weight(lb/kft) | Nominal Outer Diameter(mm) | Nominal Outer Diameter(in) | Maximum Pulling Load | |
| Installation(N/Ib) | In Service(N/Ib) | ||||||
| 1 | Simplex 2.0mm | 7.6 | 5.10 | 2.0 | 0.079 | 490/110 | 290/65 |
| 1 | Simplex 2.5mm | 7.8 | 5.23 | 2.5 | 0.098 | 490/110 | 290/65 |
| 1 | Simplex 2.8mm | 8.0 | 5.37 | 2.8 | 0.110 | 490/110 | 290/65 |
| 1 | Simplex 3.0mm | 8.2 | 5.50 | 3.0 | 0.118 | 490/110 | 290/65 |
| 2 | Duplex Flat | 28.0 | 18.79 | 4.0X6.8 | 0.157X0.267 | 980/220 | 580/130 |
| 2 | Duplex Round | 18.4 | 12.35 | 4.2 | 0.165 | 980/220 | 580/130 |
| 2 | Duplex Zip | 15.0 | 10.07 | 2.4X4.8 | 0.094X0.188 | 980/220 | 580/130 |
Mechanical Properties
Minimum Bending Radius:Under installation:20hOD During operation:10hOD Temperature Range:Operating Temperature Range:-40℃(-40℉) to +70℃(+158℉) Storage Temperature Range:-50℃(-58℉) to +70℃(+158℉) |
Maximum Compressive Load:2000N Repeated Impact: 2.9 N.m (J)3h2 impacts Twist (Torsion):180h10 times, 125hOD Cyclic Flexing:25 cycles for armoured cables.; 100 cycles for unarmoured cables. Crush Resistance:875N/cm (500lb/in) |
Fiber Compliance
| Temperature Cycling | IEC60794-1-2-F2 | Repeated Bending | IEC60794-1-2-E6 |
| Tensile Strength | IEC60794-1-2-E17 | ATorsion | IEC60794-1-2-E |
| Crush | IEC60794-1-2-E3 | Kink | IEC60794-1-2-E10 |
| Impact | IEC60794-1-2-E4 | Cable Bend | IEC60794-1-2-E11 |
| Cool Bend | IEC60794-1-2-E11 |
Safety Compliance
| General Purpose Grade | Flammability Test: OFN (UL1581) |
Riser Grade Plenum Grade FRPVC Grade LSZH Grade
LSFROH Grade
FR Grade |
Flammability Test: OFNR/FT4 (UL1666) Flammability Test: OFNP/FT6 (UL 910) Flammability Test: IEC60332-1 Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Flammability Test: IEC60332-1 & IEC 60332-3C/A Fire Resistance Test: IEC 60331 / BS 6387 CWZ |
Standard Compliance
GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596
Features
- Suitable for indoor use, such as routing connections in patching systems
- Short "patch cord" cables ideal for links between electronic equipment and fiber panels
- Compatible with wide variety of fiber optic connectors
- High quality tight-buffer coating on fiber for environmental and mechanical protection
- Customized jacket colors available for matching connectors.
- Private labeling on the cable outer jacket is also available.
