British Standard Highway Cables

Traffic Signal Cable to BS 6346

Application and Description

Traffic signal cable is used for the interconnection of traffic signal equipment or other applications requiring high core onfigurations with mechanical robustness.

Standard and Approval

BS 6346, BS 6360, BS 7655

Cable Construction

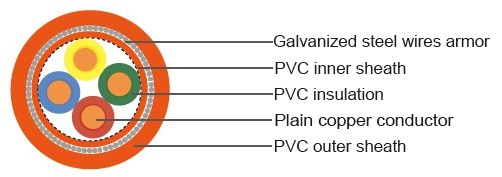

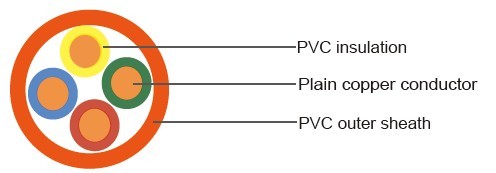

- Conductor: Solid plain annealed copper, comply with BS 6360, Class 1 - Insulation: Polyvinyl chloride (PVC), TI1, comply with BS 7655 - Bedding(for Armoured Cable Only): Polyvinyl chloride (PVC) compound - Armor(for Armoured Cable Only): Galvanized steel wire armor - Sheath: Polyvinyl chloride (PVC), TM1, comply with BS7655 - Sheath color: Orange

Core Identification

• 4 core - Red, Blue, Yellow, Green
• 8 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange
• 12 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet
• 16 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet, Brown/Red, Yellow/Red, Grey/Red, Black/Red
• 20 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet, Brown/Red, Yellow/Red, Grey/Red, Black/Red, Violet/Red, Orange/Red, Green/Red, Blue/White Binding Tape Color Code: cables containing more than 25 pairs are assembled insub-sectors/ groups. These are identified by spirally applied color-coded nonhygroscopicbinding tapes. The binding tapes use the same 25 pair color code.

Technical Characteristics

• Rated voltage: 600/Kft volts
• Conductor Resistance: at 20°C: 18.1ohms/km(1.0mm2)
• Minimum bending radius: 6 x Ø
• Temperature range: -15º C - +70º C
• Short circuit temperature: 160ºC
• Flame retardant: BS EN 60332-1-2

Cable Parameter

Number of Cores	Nominal Conductor Area	Nominal Conductor Stranding	Insulation Thickness	Bedding Thickness	Nominal diameter of armour wire	Sheath Thickness	Nominal O/D	Approx Cable Weight
	mm2	NO./mm	mm	mm	mm	mm	mm	Kg/km
Non armored cables
8	1.0	1/1.13	0.63	-	-	1.4	12.6	218
12	1.0	1/1.13	0.63	-	-	1.5	13.5	305
8*	1.0	1/1.13	0.63	-	-	1.4	14.5	523
Armored cables
4	1.0	1/1.13	0.63	0.8	0.9	1.4	13.3	325
8	1.0	1/1.13	0.63	0.8	0.9	1.4	15.6	413
12	1.0	1/1.13	0.63	0.8	1.25	1.5	17.9	567
16	1.0	1/1.13	0.63	0.8	1.25	1.5	19.9	774
20	1.0	1/1.13	0.63	0.8	1.25	1.6	22.0	905
4	1.5	1/1.38	0.63	0.8	0.9	1.4	12.5	363
8	1.5	1/1.38	0.63	0.8	0.9	1.4	15.8	534
12	1.5	1/1.38	0.63	0.8	1.25	1.5	18.5	704
16	1.5	1/1.38	0.63	0.8	1.25	1.6	20.0	836
20	1.5	1/1.38	0.63	0.8	1.25	1.6	21.5	1040
8*	1.0	1/1.13	0.63	0.8	0.9	1.4	16.3	533

* includes additional 6mm2 integral earth conductor
