(N)TSCGEHXOEU Medium Voltage LSOH Torsion Resistant Cable
TSCGEHXOEU%20Medium%20Voltage%20LSOH%20Torsion%20Resistant%20Cable_clip_image002.jpg)
Application
These LSOH cables are specifically designed for special application condition in wind turbines, used for economical transmission of large energy rates with medium voltage.
Standards
DIN VDE 0250 Part 813

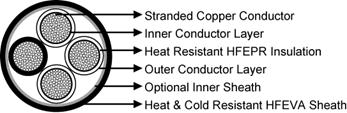

Construction
Conductor: Stranded tinned/bare copper, class 5 according to DIN VDE 0295 IEC 60228.
Inner Conductor Layer:Semiconductive halogen free rubber compound.
Insulation: Halogen free, heat resistant insulation based on EPR.
Outer Conductor Layer: Semiconductive rubber compound.
Optional Inner Sheath: Extruded special rubber compound.
Sheath: Halogen free special rubber compound based on EVA.
Technical Data
Rated Voltage Uo/U (Um) |
8.7/15 kV, 12/20 kV,18/30 kV,20/35 kV |
Operating Temperatures |
-40℃~+90℃ |
Minimum Bending Radius |
10×OD |
Torsion Application |
+/100°/m |
Maximum Permissible Tensile Load |
15N/mm² |
Short-circuit Temperature |
250℃ |
Flame Retardant |
DIN EN 60332-1 |
Halogen Free |
IEC 60754 |
Corrosive Gases |
DIN EN 50267-2-3 |
Smoke Density |
DIN EN 50268-2 |
Oil Resistant |
Yes |
Ozone Resistant |
Yes |
UV Resistant |
Yes |
Silicone Free |
Yes |
Dimensions and Weight
8.7/15kV
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
3×50/50 |
51.5 |
4050 |
3×70/70 |
57.5 |
5250 |
3×95+3×16.7 |
57.5 |
5600 |
12/20kV
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
3×25/25 |
51.5 |
3400 |
3×35/35 |
54.5 |
4000 |
3×50/50 |
56.5 |
4700 |
3×70/70 |
59.0 |
5700 |
3×95/95 |
65.5 |
6900 |
18/30kV
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
3×25/25 |
67.5 |
5300 |
3×35/35 |
67.5 |
5600 |
3×50/50 |
69.5 |
6300 |
3×70/70 |
71.5 |
7100 |
3×95/95 |
76.5 |
8500 |
20/35 kV
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
3×25/25 |
73.0 |
6100 |
3×35/35 |
73.0 |
6500 |
3×50/50 |
73.0 |
6800 |
3×70/70 |
76.0 |
7900 |
3×95/95 |
78.0 |
9100 |
